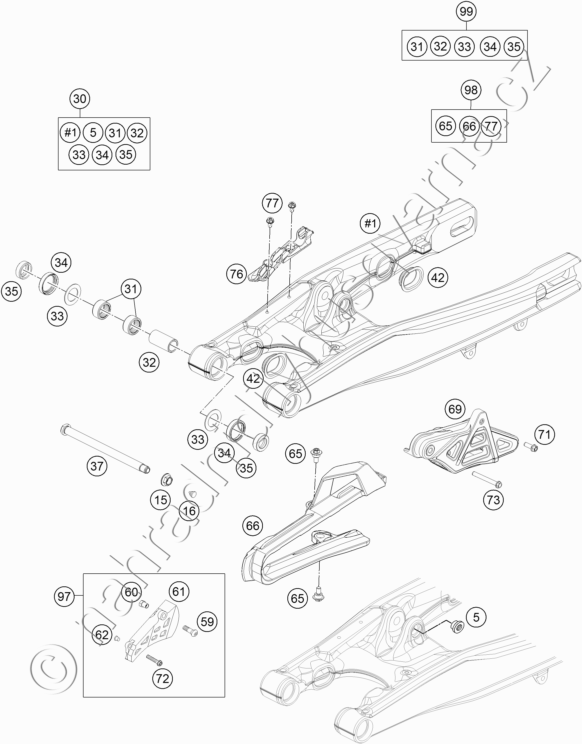

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 5 | 50180105 THREADED BUSH M12 PDS |
169 Kč | |
| 15 | 77204087000 HEX NUT M14X1.5 WS17 |
55 Kč | |
| 16 | 54403135000 PLASTIC CAP SFL10 |
29 Kč | |
| 30 | 47104030144 SWING ARM CPL. 85 SX/TC 18 |
17 561 Kč | |
| 31 | 59004031000 NEEDLE BUSH HK2012V |
161 Kč | |
| 32 | 50203081700 BUSHING SLEEVE 15X20X38,75 |
180 Kč | |
| 33 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 34 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 35 | 54603090000 BUCKET F.SHAFTSEALRING 15X25X9 |
103 Kč | |
| 37 | 47104037000 SWING ARM BOLT 85 SX |
1 150 Kč | |
| 42 | 77204041000 CLOSING COVER |
66 Kč | |
| 59 | 0019080206 COUNTER-SUNK SCREW ISA45 M8X20 |
33 Kč | |
| 60 | 47030060051 THREADED BUSH FOR CHAIN GUARD |
57 Kč | |
| 61 | 47007061000 CHAIN GUARD 85 SX 2003 |
247 Kč | |
| 62 | 45239060050 COLLAR BUSHING 6,3X8X13X9,5 |
77 Kč | |
| 65 | 83008100015 SPECIAL SCREW M6X15X5,5 |
50 Kč | |
| 66 | 47104066000 CHAIN SLIDING GUARD SM 15 |
286 Kč | |
| 69 | 78104070100 CHAIN GUIDE EXC |
799 Kč | |
| 71 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 72 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 73 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 76 | 47113047000 BRAKE HOSE GUIDE |
86 Kč | |
| 77 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 97 | 47007061010 SPROCKET COVER KIT |
340 Kč | |
| 98 | 47104066010 CHAIN GUARD KIT 85 SX 15 |
286 Kč | |
| 99 | 47004230010 SWINGARM REP. KIT 105/85 SX |
1 113 Kč |
