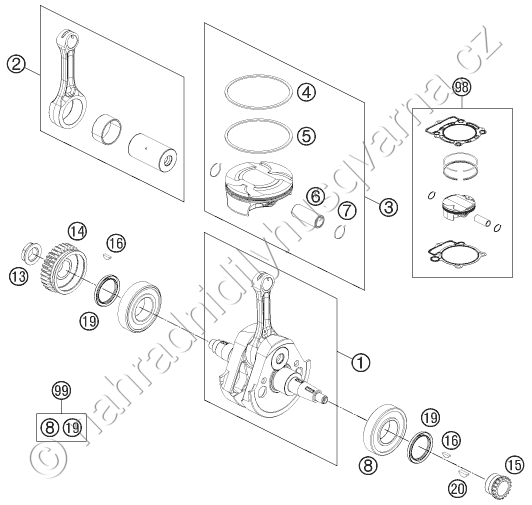

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78930018000 CRANKSHAFT CPL. |
23 703 Kč | |
| 2 | 78930015044 CON. ROD. REP. KIT |
8 317 Kč | |
| 3 | 78930007300 I PISTON I D=95MM |
7 717 Kč | |
| 3 | 78930007300 II PISTON II D=95MM |
7 717 Kč | |
| 4 | 78930030000 COMPRESSION RING |
942 Kč | |
| 5 | 78930032000 OIL SCRAPER RING |
942 Kč | |
| 6 | 78930033000 PISTON PIN |
1 323 Kč | |
| 7 | 78930074000 CIRCLIP |
340 Kč | |
| 8 | 0625062071 BALL BEARING 6207 TM-SX07E 39 |
828 Kč | |
| 13 | 78030029200 NUT PRIMARY WHEEL M20X1,5 |
126 Kč | |
| 14 | 78132000032 PRIMARY GEAR |
1 487 Kč | |
| 15 | 78036014200 TIMING GEAR 18T. |
558 Kč | |
| 16 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 19 | 0760354774 SHAFT SEAL RING 35X47X7 VITON |
214 Kč | |
| 20 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč | |
| 98 | 00050000218 PISTON KIT GR.I 450 SX-F 13-14 |
7 741 Kč | |
| 98 | 00050000219 PISTON KIT GR.II 450 SX-F13-14 |
7 741 Kč | |
| 99 | 00050002310 CRANKSHAFT REP. KIT 450 SX-F13 |
2 074 Kč |
