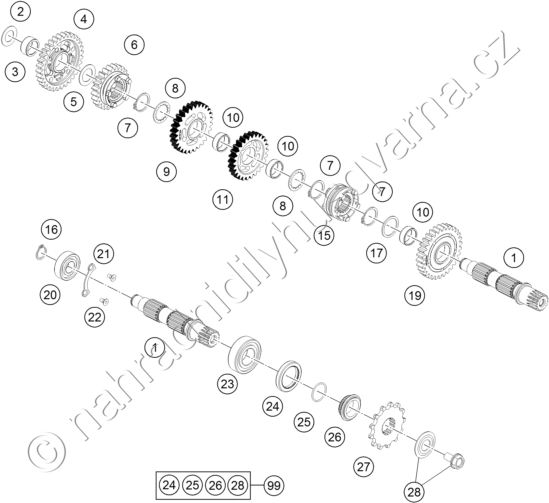

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78033010000 COUNTERSHAFT 08 |
2 476 Kč | |
| 2 | 56033030000 STOP DISC 17,2X30X1 |
158 Kč | |
| 3 | 0405202612 NEEDLE BEARING K 20X26X12 |
323 Kč | |
| 4 | 78933011000 IDLER GEAR 1.G. |
1 743 Kč | |
| 5 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 6 | 78933015000 SLIDING GEAR 5.G. |
1 743 Kč | |
| 7 | 0471250120 CIRCLIP DIN0471-25X1,2 |
18 Kč | |
| 8 | 78033033000 STOP DISK 23 X 32 X 1,5 |
73 Kč | |
| 9 | 78933013000 IDLER GEAR 3.G. |
1 743 Kč | |
| 10 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED |
175 Kč | |
| 11 | 78933014000 IDLER GEAR 4.G. |
1 743 Kč | |
| 15 | 78933018000 SHIFT COLLAR |
2 192 Kč | |
| 16 | 0471170015 CIRCLIP DIN 0471-17X1, 5 |
21 Kč | |
| 17 | 78033031000 STOP DISK 26 X 32 X 1,5 |
73 Kč | |
| 19 | 78933012000 IDLER GEAR 2.G. |
1 743 Kč | |
| 20 | 0625062035 BALL BEARING 6203 JR2 C3 |
215 Kč | |
| 21 | 78033132000 TAB WASHER BEARING COUNT.SHAFT |
84 Kč | |
| 22 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 23 | 49030023000 CYLINDRICAL ROLLER BEARING NJ205 |
1 243 Kč | |
| 24 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR |
65 Kč | |
| 25 | 0770020220 O-RING 25,12X1,78 NBR70 |
17 Kč | |
| 26 | 78133014000 SPACER SLEEVE COUNTER |
414 Kč | |
| 27 | 50033029015 FRONT SPROCKET 15-T |
360 Kč | |
| 27 | 79233029013 SPROCKET 13T |
360 Kč | |
| 27 | 79233029014 SPROCKET 14T |
360 Kč | |
| 28 | 59033034044 SCREW 10.9+SPRING WASHER |
94 Kč | |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE |
538 Kč |
