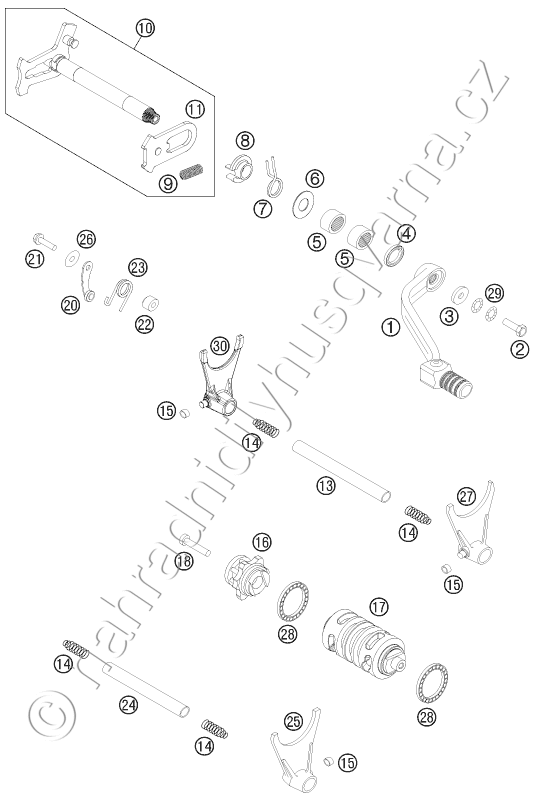

Díly pro SHIFTING MECHANISM
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 59034031000 SHIFT LEVER CPL.RACING 2000 |
1 493 Kč | |
2 | 0025060166S HH COLLAR SCREW M6X16 TX30 SL |
29 Kč | |
3 | 50232050001 STEEL WASHER 6,4X17X3 |
37 Kč | |
4 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
5 | 54632095000 NEEDLE SLEEVE HK 1412 14X20X12 |
97 Kč | |
6 | 54634050000 STOP DISK 14X30X1 |
29 Kč | |
7 | 54634014100 RETURN SPRING 2,2MM \'95 |
79 Kč | |
8 | 54634020000 SPRING GUIDE |
116 Kč | |
9 | 56534013100 TENSIONING SPRING 0,8MM |
44 Kč | |
10 | 78034005233 SHIFT SHAFT CPL. ASSY |
2 050 Kč | |
11 | 61234008044 SLIDING PLATE |
150 Kč | |
13 | 78034020000 SHIFT RAIL 11,8X101,5 |
222 Kč | |
14 | 58038023200 PRESSURE SPRING 0,9MM |
52 Kč | |
15 | 50334018100 SHIFTING ROLLER 6X8X5,2 |
58 Kč | |
16 | 78134015044 SHIFT DRUM LOCATING ALU CPL. |
631 Kč | |
17 | 78934112000 SHIFT ROLLER |
1 028 Kč | |
18 | 0012060303 AH SCREW DIN6912 M6X30 8.8 |
28 Kč | |
20 | 78134024044 LOCKING LEVER CPL. |
230 Kč | |
21 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
22 | 54634052300 SLEEVE FOR LOCKING LEVER |
63 Kč | |
23 | 60034023000 ARRESTING LEVER SPRING 03 |
47 Kč | |
24 | 78034019000 SHIFT RAIL 11,8X85 |
178 Kč | |
25 | 59034001100 SHIFTING FORK 5./6. GEAR |
684 Kč | |
26 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
27 | 59034002100 SHIFTING FORK 2./4. GEAR |
684 Kč | |
28 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
29 | 50233041000 PAIR OF WASHERS M 6 NORDLOCK |
39 Kč | |
30 | 78034003100 SHIFTING FORK 1ST/3RD GEAR |
945 Kč |
