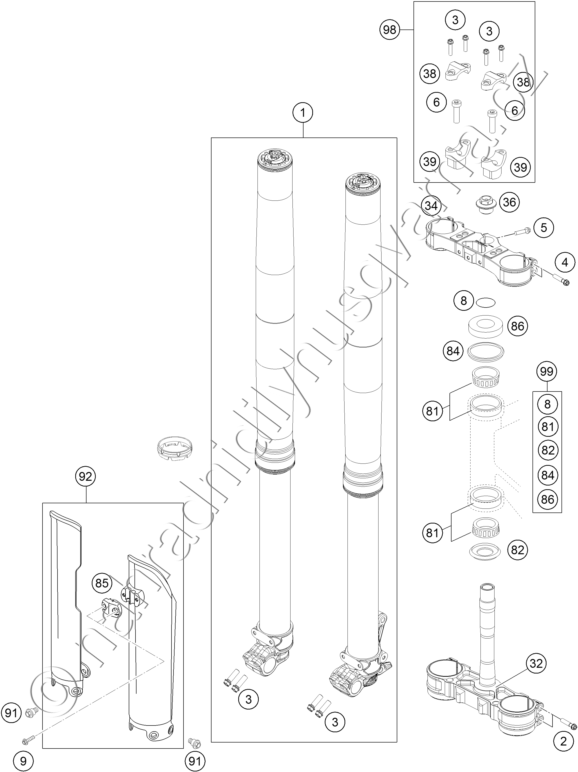

Díly pro FRONT FORK, TRIPLE CLAMP
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 14157P0801 FORK FS 450 16 |
43 830 Kč | |
| 2 | 0025080506 HH COLLAR SCREW M8X50 TX40 |
33 Kč | |
| 3 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 4 | 0025080406 HH COLLAR SCREW M8X40 TX40 |
33 Kč | |
| 5 | 0015080256S HH COLLAR SCREW M8X25 WS=10 |
52 Kč | |
| 6 | 0032100356S AH-COLLAR SCREW M10X35 ISA45 |
36 Kč | |
| 8 | 0770025035 O-RING 25X3,55 NBR70 05 |
17 Kč | |
| 9 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 32 | 7890103211630 BOTTOM TRIPLE CLAMP CPL. |
8 164 Kč | |
| 34 | 7890103411630 TOP TRIPLE CLAMP SMR X=16MM |
6 412 Kč | |
| 36 | 70009082000 AXLESCREW M20X1.5; SW17 |
201 Kč | |
| 38 | 77201038000 HANDLEBAR CLAMP 28MM |
387 Kč | |
| 39 | 59401039032 HANDLEB.SUPP. D=28MM H=32MM 05 |
619 Kč | |
| 39 | 59401039037 HANDLEB.SUPP. D=28MM H=37MM 05 |
619 Kč | |
| 39 | 59401039042 HANDLEB.SUPP. D=28MM H=42MM 05 |
619 Kč | |
| 81 | 54201081100 TAPERED ROLLER BEARING CPL. 06 |
756 Kč | |
| 82 | 77701084000 O-RING SUPPORT W. SEALING LIP |
332 Kč | |
| 84 | 54601184000 STEARING HEAD GASKET TOP |
114 Kč | |
| 85 | 59001085100DA CLAMP FOR SPEED CABLE D=6MM |
53 Kč | |
| 86 | 78101086000 STEERING HEAD COVER |
94 Kč | |
| 91 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 92 | 59001094100DA FORK PROTECT. L/S+R/S 2015 YEL |
764 Kč | |
| 98 | 00050000921 HANDLEBAR SUPPORT KIT D28/H37 |
1 942 Kč | |
| 99 | 00050000930 STEARING HEAD REP. KIT 06-15 |
1 900 Kč |
