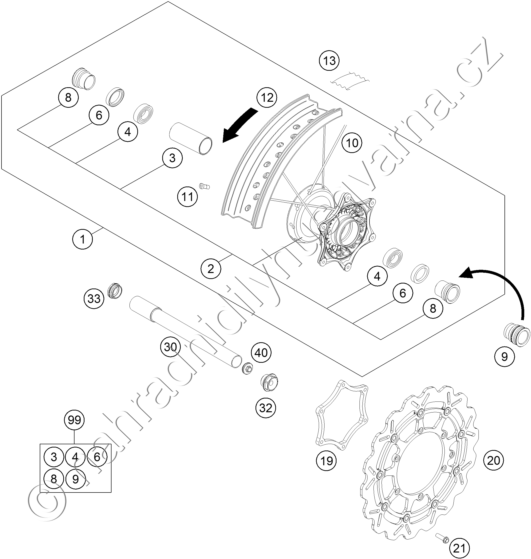

Díly pro FRONT WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 2610900104430 FRONT WHEEL CPL. 3,5X16,5\'\' |
14 180 Kč | |
| 2 | 78009010144 FRONT WHEEL HUB CPL. |
6 664 Kč | |
| 3 | 54809011000 BEA.SPACERTUBE 35X2 L=79,4 03 |
446 Kč | |
| 4 | 0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM |
445 Kč | |
| 6 | 0760354771 SHAFT SEAL RING 35X47X7 TC |
65 Kč | |
| 8 | 78009012000 SPACER BUSHING F. FR. WHEEL 08 |
490 Kč | |
| 9 | 78909012000 SPACER BUSHING F. FR. WHEEL 14 |
490 Kč | |
| 10 | 77309271164 SPOKE M4,5X164-16,5\'\' 08 |
68 Kč | |
| 11 | 81210072100 SPOKE NIPPLE QUADRAX M4,5 |
45 Kč | |
| 12 | 7730927000030 FRONT RIM 3,5X16,5\'\' |
Na dotaz | 1 |
| 13 | 58309073000 RIM TAPE 17\" |
198 Kč | |
| 19 | 58409161000 BRAKE DISC SUPPORT SM 03 |
1 540 Kč | |
| 20 | 25009260000 BRAKE DISC FRONT D=310MM |
6 410 Kč | |
| 21 | 59009062026 SPECIAL SCREW M6X26 SW=8 10.9 |
31 Kč | |
| 30 | 78909081000 WHEEL SPIN.FR. D=26MM 14 |
1 413 Kč | |
| 32 | 54809082000 SPINDLE SCREW M24X1,5 WS=27 03 |
215 Kč | |
| 33 | 54809081050 PLUG BUSHING WS=27 03 |
113 Kč | |
| 40 | 54809081070 AUXILIARY SCREW FRONT 06 |
118 Kč | |
| 99 | 78009015010 FRONT WHEEL REP.KIT 450 SMR 14 |
1 371 Kč |
