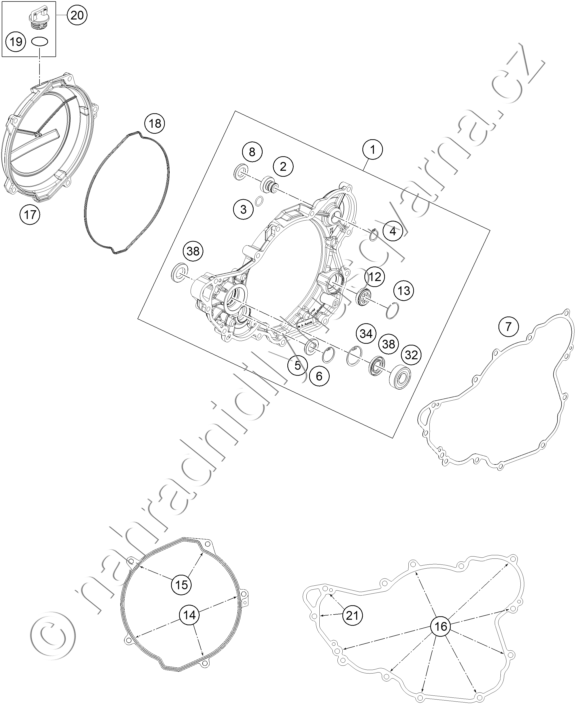

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77230001144 CLUTCH COVER CPL. |
2 785 Kč | |
| 2 | 77230001010 PLUG STARTING LEVER |
171 Kč | |
| 3 | 0770140200 O-RING 14,00X2,00 |
17 Kč | |
| 4 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
| 5 | 0760142450 SHAFT SEAL RING 14X24X5 VITON |
225 Kč | |
| 6 | 0472024120 CIRCLIP DIN0472-24X1.2 |
17 Kč | |
| 7 | 77230025000 CLUTCH COVER GASKET |
441 Kč | |
| 8 | 0760172870 SHAFT SEAL RING 17X28X7 B |
58 Kč | |
| 12 | 59030019200 OIL SIGHT GLASS |
318 Kč | |
| 13 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 |
29 Kč | |
| 14 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 15 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 16 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 17 | 77230626000KA OUTER CLUTCH COVER \'\'HQV\'\' |
1 697 Kč | |
| 18 | 77230027000 GASKET FOR OUTER CLUTCH COVER |
159 Kč | |
| 19 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
| 20 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
| 21 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 32 | 0625062022 BALL BEARING 6202 C0 2 |
263 Kč | |
| 34 | 0472300120 CIRCLIP 30X1,2 |
18 Kč | |
| 38 | 07601530451 SHAFT SEAL RING 15X30X4.5 BAUD |
94 Kč |
