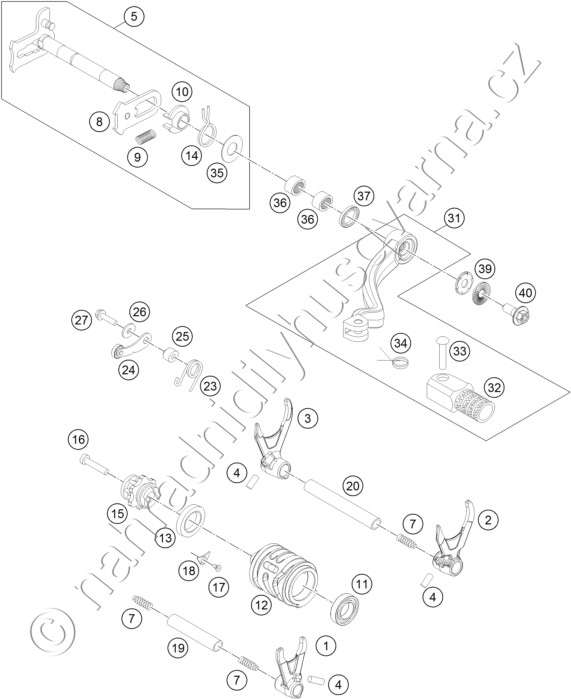

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77734001000 SHIFTING FORK 5TH/6TH GEAR |
1 171 Kč | |
| 2 | 54834202000 SHIFT FORK 2./4.G. |
1 283 Kč | |
| 3 | 54834203000 SHIFT FORK 1./3. G. |
1 283 Kč | |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 |
50 Kč | |
| 5 | 54834005133 SHIFT SHAFT ASSY |
1 661 Kč | |
| 7 | 58038023200 PRESSURE SPRING 0,9MM |
52 Kč | |
| 8 | 61234008044 SLIDING PLATE |
150 Kč | |
| 9 | 56534013100 TENSIONING SPRING 0,8MM |
44 Kč | |
| 10 | 54634020000 SPRING GUIDE |
116 Kč | |
| 11 | 0625069034 BALL BEARING 6903 C4 |
313 Kč | |
| 12 | 54834212200 GEAR SHIFT DRUM |
1 875 Kč | |
| 13 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
| 14 | 54834014000 RETURN SPRING 03 |
66 Kč | |
| 15 | 77234015000 SHIFT LOCATING DRUM CPL. |
895 Kč | |
| 16 | 0912060353 AH SCREW DIN0912-M 6X35 |
18 Kč | |
| 17 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 18 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 19 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 |
206 Kč | |
| 20 | 54834020000 SHIFT. RAIL C. SHAFT 250/300 |
246 Kč | |
| 23 | 60034023000 ARRESTING LEVER SPRING 03 |
47 Kč | |
| 24 | 50334024144 LOCATING LEVER CPL. 08 |
238 Kč | |
| 25 | 54634052300 SLEEVE FOR LOCKING LEVER |
63 Kč | |
| 26 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 27 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 31 | 59034031000 SHIFT LEVER CPL.RACING 2000 |
1 493 Kč | |
| 32 | 54634131000 STEP PLATE FOR SHIFT LEVER 250 |
494 Kč | |
| 33 | 54634031050 BOLT 6X25 FOR SHIFT LEVER |
86 Kč | |
| 34 | 54634032100 SHIFTING LEVER SPRING 250 |
52 Kč | |
| 35 | 54634050000 STOP DISK 14X30X1 |
29 Kč | |
| 36 | 54632095000 NEEDLE SLEEVE HK 1412 14X20X12 |
97 Kč | |
| 37 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
| 39 | 50233041500 PAIR NORDLOCK WASHER M6 |
39 Kč | |
| 40 | 0024060156S HH COLLAR SCREW M6X15 TX30 |
12 Kč |
