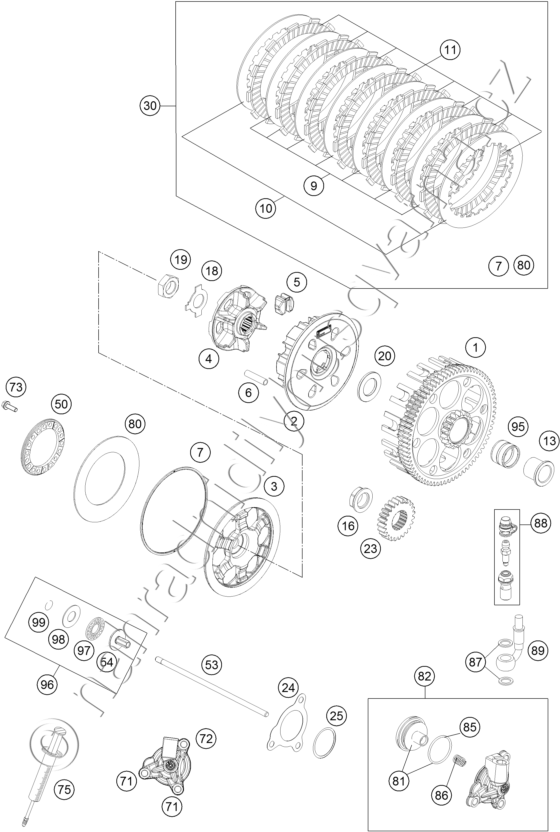

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77232001173 OUTER CLUTCH HUB |
6 975 Kč | |
| 2 | 78132002300 CLUTCH HUB |
1 791 Kč | |
| 3 | 78132003100 CLUTCH PRESSURE CAP |
741 Kč | |
| 4 | 78132002111 HUB |
1 128 Kč | |
| 5 | 78132025100 DAMPING RUBBER |
50 Kč | |
| 6 | 78132004000 SLEEVE 7,5X33.4 |
50 Kč | |
| 7 | 78132013000 WASHER 112X118X1.5 |
158 Kč | |
| 9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 |
183 Kč | |
| 10 | 59032010100 INTERMEDIATE DISC 1MM 2002 |
146 Kč | |
| 11 | 77532011000 LINING DISC |
525 Kč | |
| 13 | 77232015000 INNER RING |
441 Kč | |
| 16 | 77230029000 NUT PRIMARY WHEEL |
738 Kč | |
| 18 | 78132018000 TAB WASHER |
45 Kč | |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 20 | 77232009000 WASHER 21,8 X 37 X 5,1 |
114 Kč | |
| 23 | 77232023024 PRIMARY GEAR 24T. |
1 642 Kč | |
| 24 | 77232062000 GASKET F. OUTPUT CYLINDER |
47 Kč | |
| 25 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
| 30 | 77732010110 CLUTCH KIT 250 EXC-F, XCF-W |
3 760 Kč | |
| 50 | 78132006100 SPRING RING |
732 Kč | |
| 53 | 77232054000 PUSH ROD |
300 Kč | |
| 54 | 78032057000 PRESSURE PIECE |
340 Kč | |
| 71 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 72 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 73 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 80 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I |
413 Kč | |
| 81 | 77232066000 PISTON CPL. |
940 Kč | |
| 82 | 77232061044 OUTPUT CYLINDER CPL. |
2 187 Kč | |
| 85 | 54832067000 O-RING |
28 Kč | |
| 86 | 54832069000 PRESSURE SPRING |
257 Kč | |
| 87 | 42013226000 CU-SEAL RING DIN7603-10X16X1 |
28 Kč | |
| 88 | 62513020000 BLEEDER SCREW CPL. 05 |
445 Kč | |
| 89 | 54832063000 CLUTCH PIPE 06 |
1 761 Kč | |
| 95 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
| 96 | 78032057044 PRESSURE PIECE CPL. 08 |
512 Kč | |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 |
150 Kč | |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 |
57 Kč | |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 |
5 Kč |
