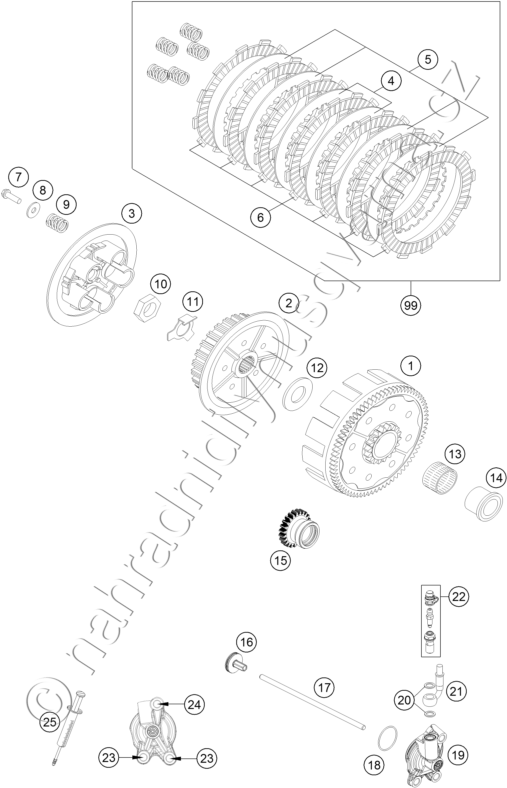

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50332001044 OUTER CLUTCH HUB \'98 |
8 605 Kč | |
| 2 | 50332002000 INNER CLUTCH HUB 125/200\'98 |
1 847 Kč | |
| 3 | 50332003000 PRESSURE PLATE 125/200\'98 |
1 237 Kč | |
| 4 | 50332010100 INTERMEDI. DISC STEEL 1,5MM\'98 |
207 Kč | |
| 5 | 50332010400 INTERMEDIATE DISC 1,5MM |
337 Kč | |
| 6 | 77032011000 LINING DISC 3,0MM 05 |
525 Kč | |
| 7 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 8 | 50232050000 WASHER 6,2X18X2 |
26 Kč | |
| 9 | 77032005100 CLUTCH SPRING |
199 Kč | |
| 10 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 11 | 50332018000 SHEET METAL LOCK 1,5MM \'98 |
66 Kč | |
| 12 | 50332020000 STOP DISK 20X39,6X3 \'98 |
199 Kč | |
| 13 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
| 14 | 50332013000 INNER RING 20X26X25,9 \'98 |
435 Kč | |
| 15 | 50432023023 PRIMARY WHEEL 23T |
1 564 Kč | |
| 16 | 78032057044 PRESSURE PIECE CPL. 08 |
512 Kč | |
| 17 | 50432054000 PUSH ROD |
262 Kč | |
| 18 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
| 19 | 25032061044 OUTPUT CYL. DOT CPL. 27MM M8 |
4 382 Kč | |
| 20 | 0603082121 SEAL RING CU DIN7603- 8X12X1 |
18 Kč | |
| 21 | 25032063000 CLUTCH PIPE L=955MM |
2 195 Kč | |
| 22 | 25032062000 HOLLOW SCREW CPL. M8 |
629 Kč | |
| 23 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 24 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 25 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 99 | 50432011010 CLUTCH KIT 125SX 17 |
5 527 Kč |
