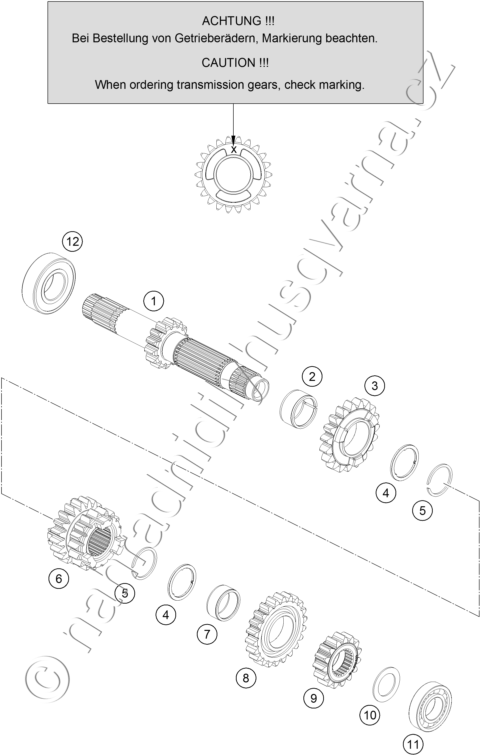

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50433001000 DRIVE SHAFT CPL. 14T |
3 577 Kč | |
| 2 | 0405212513 NEEDLE BEARING K21X25X13 SPLIT |
374 Kč | |
| 3 | 50433005144 TRANSMISSION CONVERSION KIT 5 -GEAR |
3 204 Kč | |
| 4 | 50433043000 STOP DISK |
73 Kč | |
| 5 | 50133090000 LOCK RING 22X1,2 |
28 Kč | |
| 6 | 50433013244 TRANSMISSION CONVERSION KIT 125/150 |
5 448 Kč | |
| 7 | 0405202410 NEEDLE BEARING K20X24X10 |
374 Kč | |
| 8 | 50433006100 IDLER GEAR 6TH GEAR 22T |
1 682 Kč | |
| 9 | 50433002100 SOLID GEAR 2ND GEAR 15T |
1 538 Kč | |
| 10 | 50333041000 STOP DISC 17,2X26X1 B |
45 Kč | |
| 11 | 0625160031 GROOVED BALL B. 16003 C4 J1 |
397 Kč | |
| 12 | 0625060041 BALL BEARING 6004 TNH C3 |
222 Kč |
