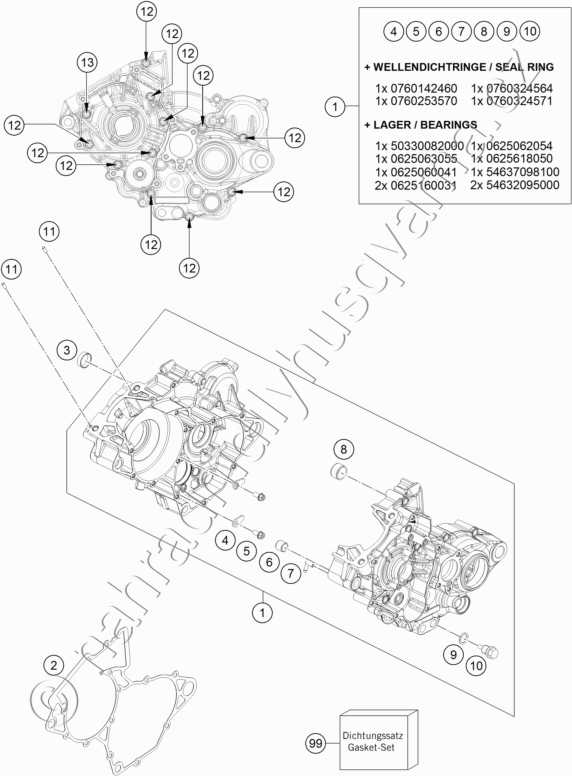

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50430000044 ENGINECASE CPL. |
15 659 Kč | |
| 2 | 50430039000 GASKET ENGINE CASE |
324 Kč | |
| 3 | 50433024050 BUSHING IDLER GEAR |
424 Kč | |
| 4 | 54634049000 RETAINING PLATE |
50 Kč | |
| 5 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 6 | 54630027000 DOWEL BUSHING 13,8X11X12 |
143 Kč | |
| 7 | 45130022000 ANGLE PIECE 50CCM LC 2001 |
84 Kč | |
| 8 | 54830027000 DOWEL 21X12 03 |
103 Kč | |
| 9 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 10 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 11 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 12 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč | |
| 13 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč | |
| 99 | 50430099000 GASKET SET ENGINE 125/150 |
3 922 Kč |
