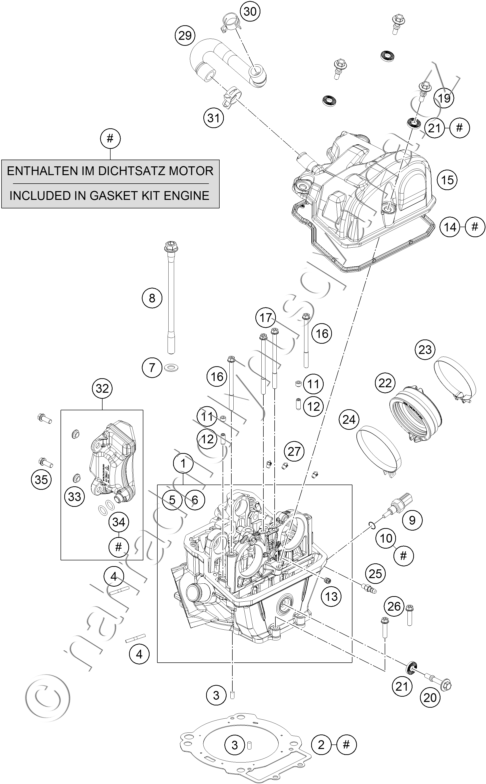

Díly pro CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7663602004424 CYLINDER HEAD CPL. |
18 601 Kč | |
| 2 | 76630036000 CYLINDER HEAD GASKET Ă 105 |
1 070 Kč | |
| 3 | 0474050100 GROOVED PIN DIN1474 5X10 |
33 Kč | |
| 4 | 0835080256 STUD DIN0835-M 8X25 10.9 |
52 Kč | |
| 5 | 76636026001 VALVE GUIDE 6MM |
522 Kč | |
| 6 | 61236025001 VALVE GIUDE INTAKE 6MM |
321 Kč | |
| 7 | 60036078050 SHIM 10,2X19X1,5MM 05 |
36 Kč | |
| 8 | 75036079000 CYLINDERHEAD SCREW M10X168WS14 |
148 Kč | |
| 9 | 79435047000 WATER TEMPERATURE SENSOR |
552 Kč | |
| 10 | 0770100020 O-RING 10.00X2.00 SILICONE |
18 Kč | |
| 11 | 0913080060S THREAD PIN DIN913-M8X6 PRE30 |
23 Kč | |
| 12 | 0979060160 PIN DIN7979 6X16 |
23 Kč | |
| 13 | 59030296000 SCREW PLUG |
151 Kč | |
| 14 | 76636053000 VALVE COVER GASKET |
390 Kč | |
| 15 | 7663605200033 VALVE COVER |
1 370 Kč | |
| 16 | 0025060806 HH COLLAR SCREW M6X80 TX30 |
29 Kč | |
| 17 | 0025060906 HH COLLAR SCREW M6X90 TX30 |
29 Kč | |
| 19 | 78036054100 VALVE COVER SCREW |
122 Kč | |
| 20 | 75036055000 VALVE MECHANISM COVER SCREW |
73 Kč | |
| 21 | 75036052010 DECOUPLING ELEMENT |
42 Kč | |
| 22 | 27036044000 RUBBER SLEEVE |
517 Kč | |
| 23 | 75036047000 HOSE CLAMP GEMI 70MM |
169 Kč | |
| 24 | 61336048000 HOSE CLAMP GEMI 75 |
255 Kč | |
| 25 | 60036023200 VACUUM CONNECTION M6/0.75MM |
645 Kč | |
| 26 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 27 | 60030063050 OIL JET 50 M5 |
159 Kč | |
| 29 | 27030088000 PRE-FORMED HOSE |
384 Kč | |
| 30 | 00049200121 CLAMP STD DN20 |
36 Kč | |
| 31 | 00049210121 CLAMP 21X12 STD-DES |
36 Kč | |
| 32 | 76636065000 RESONATOR ASSY. |
815 Kč | |
| 33 | 69004060150 BUCHSE KETTENSCHUTZ |
77 Kč | |
| 34 | 0770116241 O-RING 11,3 X2,4 SILICON |
33 Kč | |
| 35 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč |
