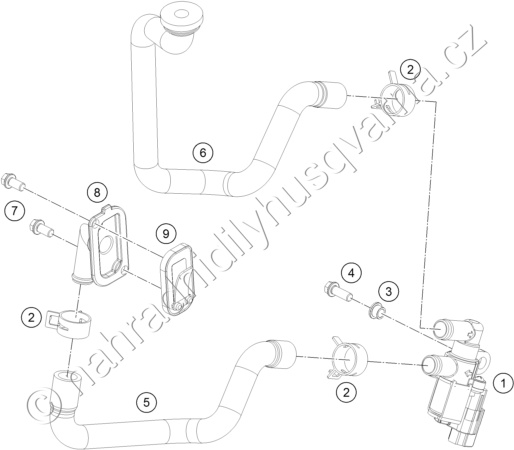

Díly pro SECONDARY AIR SYSTEM SAS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 75005026000 SLS-VALVE 07 |
1 267 Kč | |
| 2 | 00050325706 VARIABLE ONE-EAR CLAMP 32,5MM |
65 Kč | |
| 3 | 75005033000 COLLAR BUSH SAS-VALVE |
49 Kč | |
| 4 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 5 | 27005027000 SAS HOSE BLEEDER COVER |
350 Kč | |
| 6 | 27005026000 SAS HOSE TO AIRBOX |
621 Kč | |
| 7 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 8 | 61205032000 SLS-FLANGE |
255 Kč | |
| 9 | 60005026000 REED VALVE |
356 Kč |
