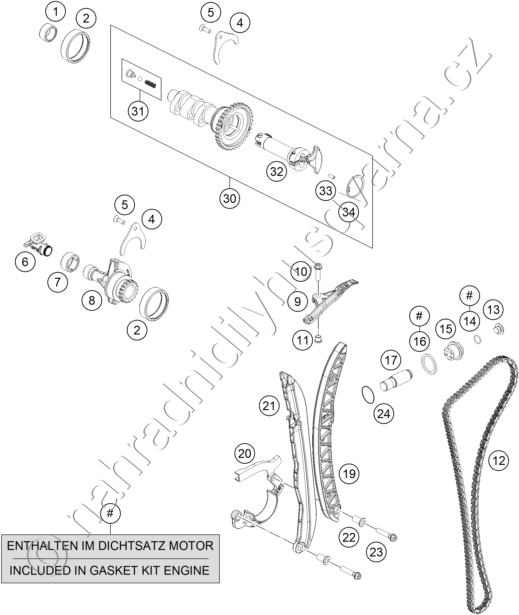

Díly pro TIMING DRIVE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0618182412 NEEDLE BEAR.HK1812 18/24/12 05 |
143 Kč | |
| 2 | 0618404712 NEEDLE SLEEVE HK4012B40X47X12 |
201 Kč | |
| 4 | 76636010050 LOCKING PLATE |
292 Kč | |
| 5 | 0019050163S INT. TORX FLAT HEAD M5X16 8.8 |
26 Kč | |
| 6 | 76636081000 BREATHER SYSTEM CONNECTOR |
129 Kč | |
| 7 | 50203097000 NEEDLE BUSH HK 2012 |
219 Kč | |
| 8 | 76630158000 BALANCER SHAFT CYLINDER HEAD |
4 628 Kč | |
| 9 | 76636005000 CHAIN GUIDE |
106 Kč | |
| 10 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 11 | 60040027050 SUPPORTING SLEEVE 03 |
114 Kč | |
| 12 | 76636013000 TIMING CHAIN |
1 142 Kč | |
| 13 | 76636080000 PLUG |
222 Kč | |
| 14 | 0770010010 O-RING 10.00X1.00 NBR70 |
18 Kč | |
| 15 | 75036008000 SCREW PLUG CHAIN ADJ. 07 |
280 Kč | |
| 16 | 0603202702 CU SEAL-RING 20X27X1 |
73 Kč | |
| 17 | 77036003000 CHAIN ADJUSTER HYD. 05 |
1 301 Kč | |
| 19 | 76636002000 TENSIONER RAIL |
324 Kč | |
| 20 | 76636018000 CHAIN GUIDE |
116 Kč | |
| 21 | 76636001000 GUIDING RAIL |
182 Kč | |
| 22 | 75036018050 SUPPORTING SLEEVE 07 |
60 Kč | |
| 23 | 0025060306S HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 24 | 0770180020 O-RING 18.00X2.00 NBR70 |
21 Kč | |
| 30 | 76636010144 CAMSHAFT |
8 336 Kč | |
| 31 | 76636016044 DECO SPRING CPL. |
530 Kč | |
| 32 | 76636019144 INSERT CAMSHAFT CPL. |
3 076 Kč | |
| 33 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 34 | 0472320120 SEEGER RING J32 DIN472 32X1,2 |
185 Kč |
