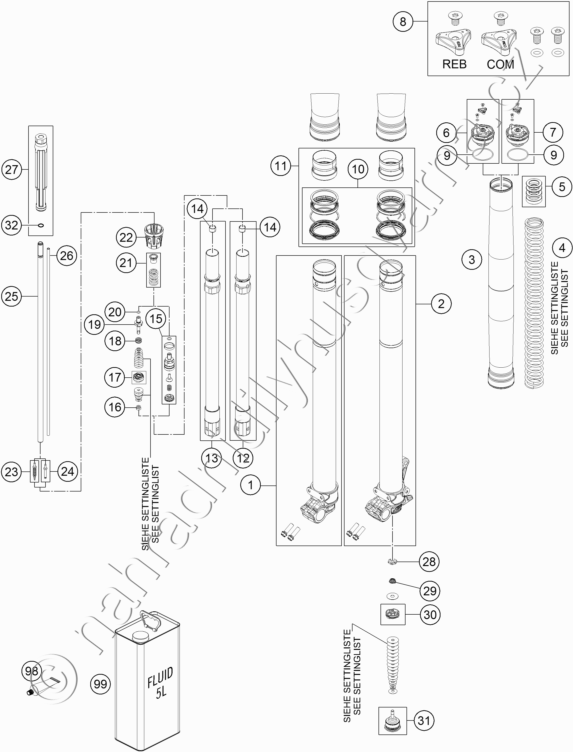

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 48601633S1 AXLE CLAMP OC R/S CPL. & TUBE |
5 033 Kč | |
| 2 | 48601632S1 AXLE CLAMP OC L/S CPL. & TUBE |
5 033 Kč | |
| 3 | 48600736 OUTER TUBE L577 D54/60MM 2L |
8 770 Kč | |
| 4 | 91410099S SPRING 3,8N/MM SET D=4,9MM |
3 382 Kč | |
| 4 | 91410100S SPRING 4,0N/MM SET D=4,9MM |
3 382 Kč | |
| 4 | 91410101S SPRING 4,2N/MM SET D=4,9MM |
3 382 Kč | |
| 4 | 91410102S SPRING 4,4N/MM SET D=4,9MM |
3 382 Kč | |
| 4 | 91410103S FORK SPRING L= 470 4,6 N/MM SET |
3 382 Kč | |
| 4 | 91410104S SPRING 4,8N/MM SET D=4,9MM |
3 382 Kč | |
| 5 | R14026 SPRING SPACER KIT |
408 Kč | |
| 6 | 48601680S SCREW CAP PA M51X1,5 CPL. R/S |
3 193 Kč | |
| 7 | 48601681S SCREW CAP PA M51X1,5 CPL. L/S |
3 193 Kč | |
| 8 | R14033 SCREW CAP SMALL PART KIT |
395 Kč | |
| 9 | 48600048 O-RING NBR 46 X 2 |
44 Kč | |
| 10 | R14046 REPAIR KIT 4860 PACK |
1 812 Kč | |
| 11 | R14063 FORK REP. KIT 48MM OFFROAD |
1 960 Kč | |
| 12 | 48600763S1 PIPE&THREADED SLEEVE WITH HOLE |
2 325 Kč | |
| 13 | 48600763S2 PIPE & THREADED SLEEVE |
2 325 Kč | |
| 14 | 48600430 DU BUSH FOR PISTON ROD |
66 Kč | |
| 15 | 48601554S1 ASSEMBLY COMPRESSION TAP CPL. |
736 Kč | |
| 16 | 40540486 NUT M6X0,5 REBOUND |
57 Kč | |
| 17 | 48600575S PISTON REBOUND + PISTON RING |
453 Kč | |
| 18 | 48600382 SHUTTLE VALVE SPRING C=0,4 |
52 Kč | |
| 19 | 48600576 PISTON ROD REBOUND |
243 Kč | |
| 20 | 48600299 O-RING 6X1,2 NBR |
60 Kč | |
| 21 | 48600578S SPRING REBOUND + SPRING GUIDE |
522 Kč | |
| 22 | 48601298 SPRING SUPPORT |
692 Kč | |
| 23 | 48600277S ADJUSTING NEEDLE CPL. |
124 Kč | |
| 24 | 48601558S COMPRESSION ADJ. NEEDLE CPL. |
124 Kč | |
| 25 | 48600568 PISTON ROD D=12 L=554 ALU |
1 966 Kč | |
| 26 | 48601786 ADJUSTING PIPE |
318 Kč | |
| 27 | 48601556S HYDR. STOP L200 Ă 31,9 CPL.07 |
613 Kč | |
| 28 | 48600163 CHECK VALVE NUT M6X0,5 D=2 |
127 Kč | |
| 29 | 48600202 SPRING CHECK VALVE D=0,7 |
29 Kč | |
| 30 | 48600047S PISTON + O-RING |
324 Kč | |
| 31 | 48601553S SCREW CAP OC SPLIT CPL. |
390 Kč | |
| 32 | 04500003 O-RING 11X2,5 NBR 70 SH PTFE |
44 Kč | |
| 98 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 99 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč |
