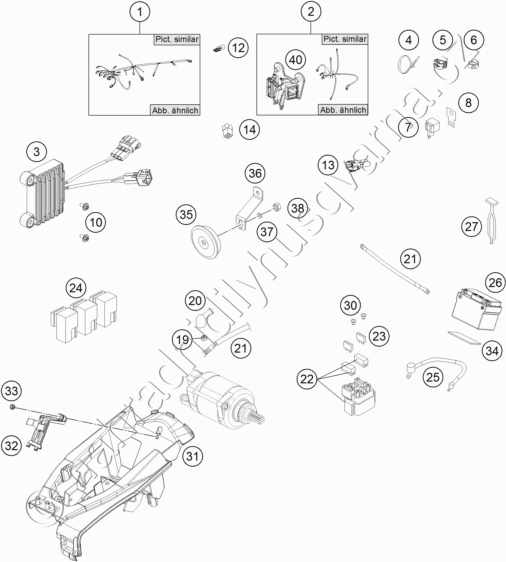

Díly pro WIRING HARNESS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79611075000 MAIN WIRING HARNESS |
7 565 Kč | |
| 2 | 77711079000 WIRING HARNESS LIGHT CPL. EU |
1 288 Kč | |
| 3 | 79611034000 VOLTAGE REGULATOR |
4 403 Kč | |
| 4 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 4 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 4 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 5 | 83013026000 CABLE GUIDE |
39 Kč | |
| 6 | 57013072100 WIRING HOLDER 16MM |
23 Kč | |
| 6 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 7 | 76511030000 FLASHER UNIT |
762 Kč | |
| 8 | 58211031100 BRACKET FOR FLASHER RELAISE |
71 Kč | |
| 10 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 12 | 49111425200 BULB 12V 2,3W (W2X4,6D) |
23 Kč | |
| 13 | 69011040000 END PLUG CAN-BUS 08 |
251 Kč | |
| 14 | 81211096000 DUMMY PLUG AN 4-PIN |
135 Kč | |
| 19 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 20 | 77240099000 PROTECTION CAP F. STARTER ENG. |
164 Kč | |
| 21 | 58411059100 STARTERCABLE 700 MM \'97 |
289 Kč | |
| 22 | 58211058000 STARTER RELAY 12V \'99 |
1 294 Kč | |
| 23 | 58011109120 FUSE 20 A |
63 Kč | |
| 24 | 61111057000 RELAY CM1A-R-12V-H80 07 |
257 Kč | |
| 25 | 58711086000 WIRING HARNESS BATTERY DUKE\'99 |
292 Kč | |
| 26 | 77311953000 LITHIUM ION BATTERY 5S |
2 603 Kč | |
| 27 | 50303018000 RUBBER L=145MM |
98 Kč | |
| 30 | 0902060083 AH OVAL SCREW ISO 7380 M 6X8 |
23 Kč | |
| 31 | 25011055100 BATTERY BOX |
607 Kč | |
| 32 | 79011056100 BATTERY BOX SUPPORT |
148 Kč | |
| 33 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 34 | 59003001099 METAMOLL 90X45X3MM 03 |
39 Kč | |
| 35 | 50311060200 DC HORN 12V 07 |
541 Kč | |
| 36 | 78011061000 HORN BRACKET EXC 08 |
69 Kč | |
| 37 | 0125050003 WASHER DIN0125-A 5,3 |
17 Kč | |
| 38 | 0934050003 HEXAGON NUT DIN0934-M 5 |
20 Kč | |
| 40 | 77711083000 SUPPORT BRACKET |
430 Kč |
