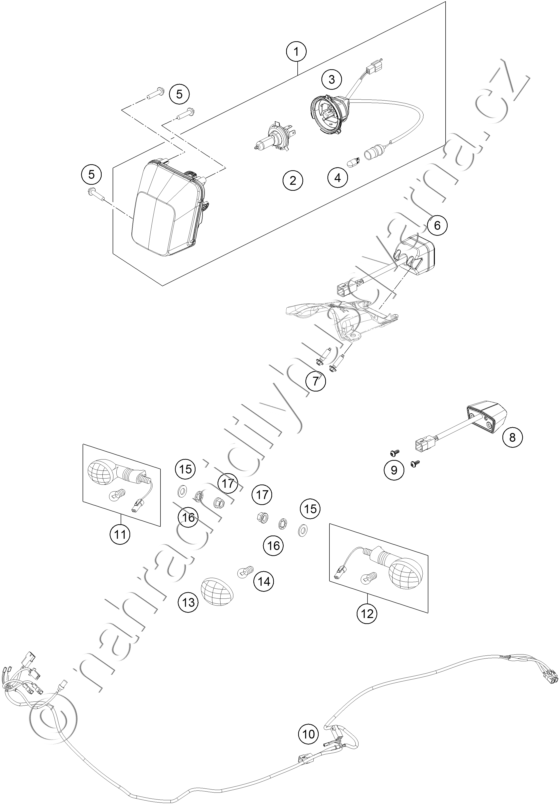

Díly pro LIGHTING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 26514001000 MAIN HEAD LIGHT 270 HQV HS1 |
1 984 Kč | |
| 2 | 54611038012 BULB HS1 12V 35/35W WHITE |
397 Kč | |
| 3 | 78114001050 LAMP BRACKET CPL. 2014 |
841 Kč | |
| 4 | 49011435100 BULB 12V 5W (W2,1X9,5D) PHIL. |
68 Kč | |
| 5 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 6 | 26514040000 REAR LIGHT EU |
1 878 Kč | |
| 7 | 0017060255 EJOT PT SCREW K60X25-Z SW6 |
17 Kč | |
| 8 | 60314047000 LICENSE PLATE LIGHTING |
653 Kč | |
| 9 | 0081050121 EJOT PT SCREW K50X12 |
21 Kč | |
| 10 | 77711081100 TURN SIGNAL WIRING HARNESS |
818 Kč | |
| 11 | 54814026200 FLASHER CPL. FR.R/S RE.L/S 09 |
567 Kč | |
| 12 | 54814025200 FLASHER CPL. FR.L/S RE.R/S 09 |
567 Kč | |
| 13 | 54814028000 FLASHER LENS L/S R/S 05 |
130 Kč | |
| 14 | 44111015100 BULB 12V 10W (BA15S) |
76 Kč | |
| 15 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 16 | 0797100003 LOCK WASHER DIN6797-J10,5 ZI |
17 Kč | |
| 17 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč |
