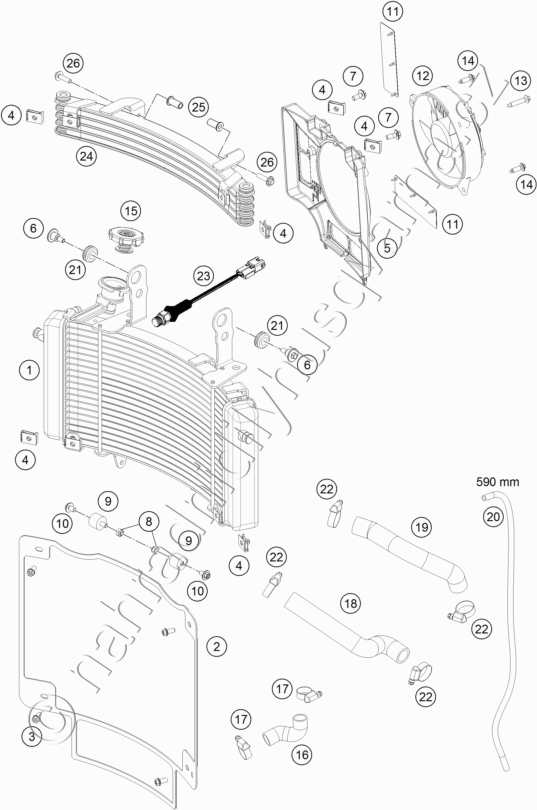

Díly pro COOLING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76435010000 WATER RADIATOR |
38 158 Kč | |
| 2 | 76435134000 RADIATOR PROTECTION CPL. |
Na dotaz | 1 |
| 3 | 0024060136 HH COLLAR SCREW M6X13 TX30 |
29 Kč | |
| 4 | 54603048100 CLIP NUT M6 |
87 Kč | |
| 5 | 76435044000 FAN COVER |
Na dotaz | 1 |
| 6 | 60035001000 SPECIAL SCREW M6X21 WS=8 |
71 Kč | |
| 7 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 8 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 9 | 43205062100 SILENTBLOC 20X15-M6X10-(1) |
106 Kč | |
| 10 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 11 | 62635044050 FAN CLACK RUBBER 08 |
94 Kč | |
| 12 | 60035041000 FAN L/S 03 |
Na dotaz | 1 |
| 13 | 0017060305 SPECIAL SCREW K60X30 WS=6 |
21 Kč | |
| 14 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 |
29 Kč | |
| 15 | 76435009000 |
Na dotaz | 1 |
| 16 | 76435026002 RADIATOR HOSE |
Na dotaz | 1 |
| 17 | 42013037400 HOSE CLAMP NORMA 14/24 |
56 Kč | |
| 18 | 76435026000 RADIATOR HOSE |
Na dotaz | 1 |
| 19 | 76435026001 RADIATOR HOSE |
Na dotaz | 1 |
| 20 | 58507007001 HOSE 8X5MM RALLYE 03 |
Na dotaz | 1 |
| 21 | 41001052000 RUBBER SLEEVE D=12MM |
57 Kč | |
| 22 | 10001020300 HOSE CLAMP 18-29 |
52 Kč | |
| 23 | 76435045000 THERMOSWITCH 80-85 DG |
Na dotaz | 1 |
| 24 | 76438051000 OIL RADIATOR |
14 459 Kč | |
| 25 | 76212090070 INSULATED SCREW JOINT M6 |
Na dotaz | 2 |
| 26 | 0014060203 HH COLLAR SCREW M 6X20 WS=8 |
21 Kč |
