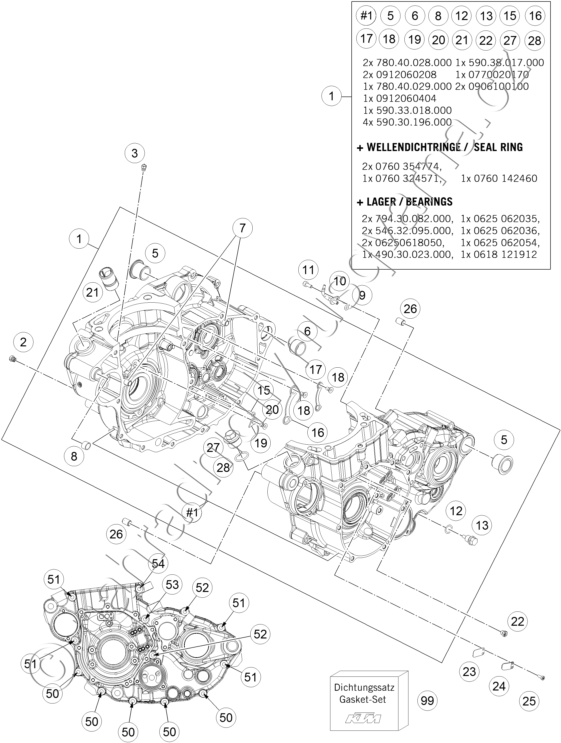

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76430000033 ENGINE CASE CPL. |
33 388 Kč | |
| 2 | 57031523145 MAIN JET 145 |
102 Kč | |
| 3 | 60030063190 OIL JET 90 M5 |
260 Kč | |
| 5 | 75030010100 CASE BUSH |
195 Kč | |
| 6 | 54830027000 DOWEL 21X12 03 |
103 Kč | |
| 7 | 59030023000 DOWEL SLEEVE 6X8X11.5 |
82 Kč | |
| 8 | 51030026100 DOWEL 17 X 13 X 12 |
89 Kč | |
| 9 | 0770035020 O-RING 3,5X2,00 NBR |
4 Kč | |
| 10 | 81230064000 OIL JET ANGLED 70 |
212 Kč | |
| 11 | 0912040103 AH.SCREW DIN0912-M 4X10 |
20 Kč | |
| 12 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 13 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 15 | 0018050103 INT. TORX OVAL HEAD M 5X10 8.8 |
23 Kč | |
| 16 | 78033032000 TAB WASHER BEARING MAIN SHAFT |
81 Kč | |
| 17 | 78033132000 TAB WASHER BEARING COUNT.SHAFT |
84 Kč | |
| 18 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč | |
| 19 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 20 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 21 | 58030010200 SCREW IN NOZZLE M20X1,5 |
166 Kč | |
| 22 | 59030054000 JET 60 DELLORTO M6X0,75 |
106 Kč | |
| 23 | 81205027003 MEMBRAN CRANKCASE |
76 Kč | |
| 24 | 81205027004 TAB WASHER MEMBRAN CSC |
76 Kč | |
| 25 | 0458030080 CYLIND.SCREW M3X8 ISO 14580 SS |
37 Kč | |
| 27 | 59038017100 PLUG M20X1,5 WS=13 |
252 Kč | |
| 28 | 0770017025 |
Na dotaz | 1 |
| 50 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 51 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč | |
| 52 | 0025060756 HH COLLAR SCREW M6X75 TX30 |
29 Kč | |
| 53 | 0025060806 HH COLLAR SCREW M6X80 TX30 |
29 Kč | |
| 54 | 0025060856 HH COLLAR SCREW M6X85 TX30 |
29 Kč | |
| 99 | 78130099000 GASKET SET 450/500 EXC 12 |
4 385 Kč |
