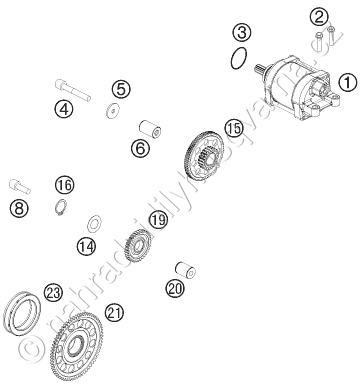

Díly pro ELECTRIC STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78140001000 E-STARTER CPL. 0,5KW |
5 758 Kč | |
| 2 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 3 | 0770250030 O-RING 25,00X3,00 NBR 70 |
17 Kč | |
| 4 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 5 | 78040016004 STOP DISC 6X23X2 |
52 Kč | |
| 6 | 78040029000 BEARING BOLT |
113 Kč | |
| 8 | 0912060208 AH SCREW DIN0912-M 6X20 SS |
23 Kč | |
| 14 | 0988172405 SHIM WASHER DIN0988-17X24X0,5 |
15 Kč | |
| 15 | 78040016100 TORQUE LIMITER CPL. |
2 989 Kč | |
| 16 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
| 19 | 78940022000 IDLER GEAR 30-T CPL. |
857 Kč | |
| 20 | 78040028000 BUSHING PIN |
124 Kč | |
| 21 | 78940020033 FREEWHEEL GEAR 66 C CPL. |
1 743 Kč | |
| 23 | 75040026000 FREE WHEEL |
1 944 Kč |
