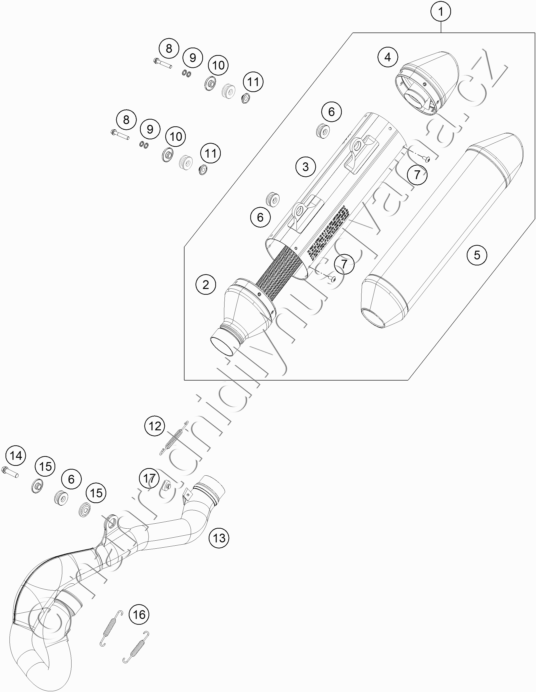

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 25505079000 SILENCER |
7 672 Kč | |
| 2 | 25505079050 MUFFLER CONNECTION CAP |
4 858 Kč | |
| 3 | 25505079080 SILENCER HOUSING |
3 201 Kč | |
| 4 | 25505079060 ENDCAP CPL. |
3 210 Kč | |
| 5 | 25505078590 INSULATING PACKAGE 590 GRAMM |
1 703 Kč | |
| 6 | 77205068000 DAMP. COMPON. BLACK |
69 Kč | |
| 7 | 78105081010 SCREW TORX M5X10 |
15 Kč | |
| 8 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 9 | 50233041000 PAIR OF WASHERS M 6 NORDLOCK |
39 Kč | |
| 10 | 77205169000 BUSHING 7.5x12x28x8.3 11 |
82 Kč | |
| 11 | 77205069000 BUSHING 7.5x12x20x8.2 11 |
82 Kč | |
| 12 | 50305116000 TEN.SPRING L=75MM EY.MOVEABLE |
82 Kč | |
| 13 | 79405007100 EXHAUST PIPE SX |
8 580 Kč | |
| 14 | 0025080356 HH COLLAR SCREW M8X35 TX40 |
33 Kč | |
| 15 | 77805069000 BUSHING 8.5x12x28x8.3 |
79 Kč | |
| 16 | 50305016000 TEN.SPRING L=62MM EY.MOVEABLE |
98 Kč | |
| 17 | 54308042000 RUBBER BUFFER |
55 Kč |
