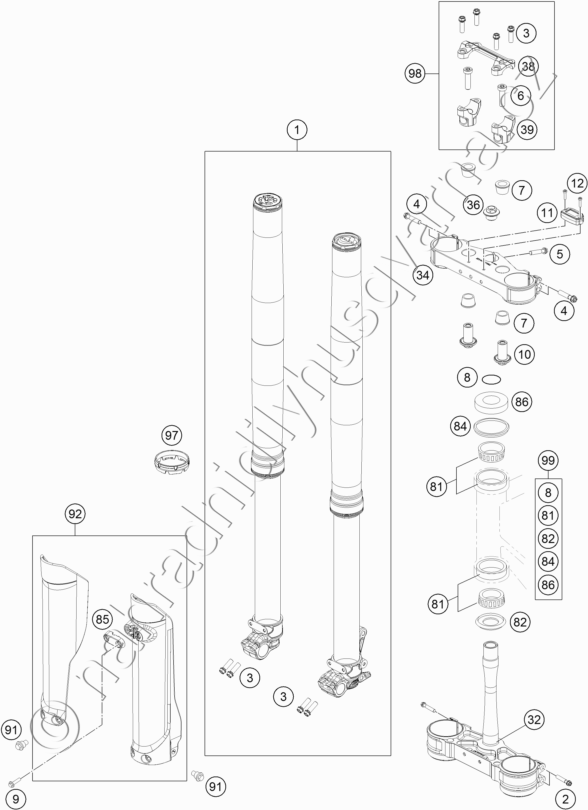

Díly pro FRONT FORK, TRIPLE CLAMP
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 34188Q5901 FORK 450 SX-F 2017 |
47 338 Kč | |
| 2 | 0025080506 HH COLLAR SCREW M8X50 TX40 |
33 Kč | |
| 3 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 4 | 0025080406 HH COLLAR SCREW M8X40 TX40 |
33 Kč | |
| 5 | 0015080256S HH COLLAR SCREW M8X25 WS=10 |
52 Kč | |
| 6 | 0032100356S AH-COLLAR SCREW M10X35 ISA45 |
36 Kč | |
| 7 | 83001040000 RUBBER BUSH |
65 Kč | |
| 8 | 0770025035 O-RING 25X3,55 NBR70 05 |
17 Kč | |
| 9 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 10 | 79001037034 HANDLEBAR SUPPORT LOWER PART |
958 Kč | |
| 11 | 81312920000 HOUR METER HQV |
1 710 Kč | |
| 12 | 0912040163 AH SCREW DIN0912-M 4X16 |
5 Kč | |
| 32 | 7900103212230 BOTT.TRIPLE CLAMP VMT. X=22MM |
8 164 Kč | |
| 34 | 7900113412230 UPPER TRIPLE CLAMP X=22MM 2017 |
6 412 Kč | |
| 36 | 70009082000 AXLESCREW M20X1.5; SW17 |
201 Kč | |
| 38 | 79001038000 HANDLEBAR CLAMP 28MM |
1 120 Kč | |
| 39 | 79001039136 HANDLEBAR SUPPORT D28MM-H36MM |
799 Kč | |
| 81 | 54201081100 TAPERED ROLLER BEARING CPL. 06 |
756 Kč | |
| 82 | 77701084000 O-RING SUPPORT W. SEALING LIP |
332 Kč | |
| 84 | 54601184000 STEARING HEAD GASKET TOP |
114 Kč | |
| 85 | 25001085100HA CLAMP FOR BRAKEHOSE |
61 Kč | |
| 86 | 78101086000 STEERING HEAD COVER |
94 Kč | |
| 91 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 92 | 25001094100HAA FORK PROTECTION SET HQV 17 |
1 362 Kč | |
| 97 | 48600698 FORK PROTECTION RING 08 |
73 Kč | |
| 98 | 00050000929 HANDLEBAR SUPPORT KIT D28/H36 |
2 082 Kč | |
| 99 | 00050000930 STEARING HEAD REP. KIT 06-15 |
1 900 Kč |
