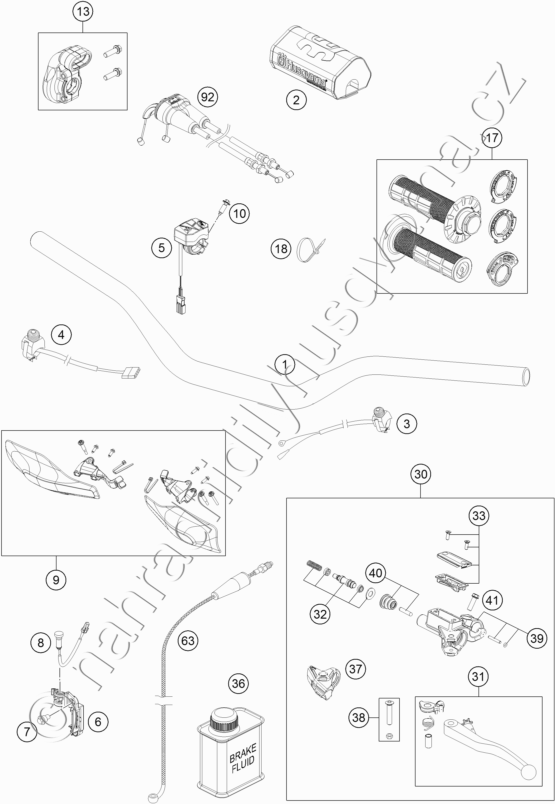

Díly pro HANDLEBAR, CONTROLS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 2500200100030 HANDLEBAR D=28MM |
2 819 Kč | |
| 2 | 80302602144 BAR PAD 2015 |
999 Kč | |
| 3 | 50311089200 SHORT CIRCUIT BUTTON 02 |
626 Kč | |
| 4 | 78111074000 STARTER BUTTON GREY 13 |
703 Kč | |
| 5 | 79039974044 MAP SELECT SWITCH CPL. |
2 603 Kč | |
| 6 | 77214098000 HOLDER INDICATOR LIGHT SX |
60 Kč | |
| 7 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 8 | 81214083000 INDICATOR LIGHT LED YELLOW FI |
501 Kč | |
| 9 | 2500208204428 HANDGUARD RIGHT + LEFT WHITE |
738 Kč | |
| 10 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 13 | 79002010025 THROTTLE CONTROL CASING CPL. |
979 Kč | |
| 17 | 79002021100 GRIP SET |
619 Kč | |
| 18 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 18 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 30 | 25002130044 MASTER CYLINDER DOT CPL. 9,5MM |
8 010 Kč | |
| 31 | 50302031300 CLUTCH LEVER CPL. 2009 |
863 Kč | |
| 32 | 25002132000 REP. KIT PISTON DOT 9,5MM |
2 046 Kč | |
| 33 | 25002033000 COVER HYDR. CLUTCH DOT CPL. |
533 Kč | |
| 36 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč | |
| 37 | 76502037000 PROTECT.CAP FOR LEVER PERCH 13 |
562 Kč | |
| 38 | 50302038200 LEVER SCREW SHORT CPL. 09 |
437 Kč | |
| 39 | 25002044000 CLAMP CPL. SEND BLASTED |
502 Kč | |
| 40 | 76502046000 PUSH ROD CPL. 13 |
635 Kč | |
| 41 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 63 | 81232063000 CLUTCH PIPE 09 |
2 904 Kč | |
| 92 | 79002091000 THROTTLE CABLE CPL. 4STROKE |
1 888 Kč |
