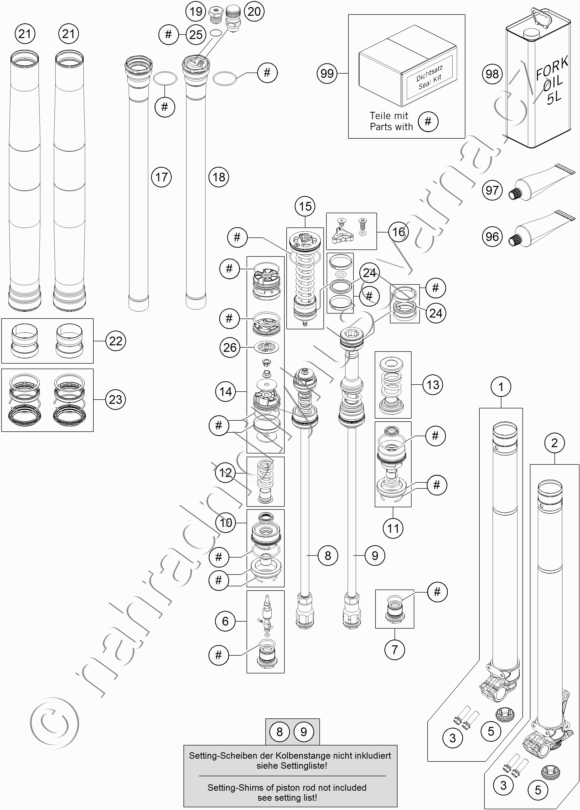

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 48601408S2 FORK LEG R/S + TUBE CPL. |
6 976 Kč | |
| 2 | 48601407S2 FORK LEG L/S + TUBE CPL. |
6 976 Kč | |
| 3 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 5 | 48600692 RUBBER CAP D=26,4 |
92 Kč | |
| 6 | 48601484S ADJUSTING CAP M20 CPL. |
979 Kč | |
| 7 | 48601533S PLUG M20 CPL. |
522 Kč | |
| 8 | 48601574S1 PISTON ROD R/S CPL. M9X1 |
6 354 Kč | |
| 9 | 48601501S PISTON ROD L/S CPL. M12X1 |
6 354 Kč | |
| 10 | 48601462S1 SCREW SLEEVE OIL CPL. |
2 941 Kč | |
| 11 | 48601452S1 SCREW SLEEVE AIR CPL. |
2 941 Kč | |
| 12 | 48600578S SPRING REBOUND + SPRING GUIDE |
522 Kč | |
| 13 | 48601578S SPRING REBOUND + SPRING GUIDE |
522 Kč | |
| 14 | R14061 PISOTN SET AIR FORK D34 |
1 812 Kč | |
| 15 | 48601485S COMPRESSION UNIT CPL. |
5 314 Kč | |
| 16 | R14062 SMALL PARTS KIT SCREW CAP |
63 Kč | |
| 17 | 48601454S1 SCREW CAP + TUBE CPL. R/S |
6 574 Kč | |
| 18 | 48601453S1 SCREW CAP + TUBE CPL. L/S |
6 574 Kč | |
| 19 | 48601495 PLUG SCREW M8X1 BN44 |
227 Kč | |
| 20 | 48601494S VALVE M8X1 INCL. SCREW CAP |
979 Kč | |
| 21 | 48601671 OUTER TUBE L577 D54/60MM 2L |
8 770 Kč | |
| 22 | R14047 REP. KIT GUIDE BUSHINGS |
631 Kč | |
| 23 | R14046 REPAIR KIT 4860 PACK |
1 812 Kč | |
| 24 | 04100002 X-RING 26,57X3,53 FKM 80SH. |
145 Kč | |
| 25 | 48600044 O-RING NBR 6X1,5 |
29 Kč | |
| 26 | 48601459 CHECKVALVE SHIM |
350 Kč | |
| 96 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 97 | 00062010051 CENTOPLEX 2 EP - 45G MP-GREASE |
326 Kč | |
| 98 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
| 99 | R14060 SEALING KIT |
1 812 Kč |
