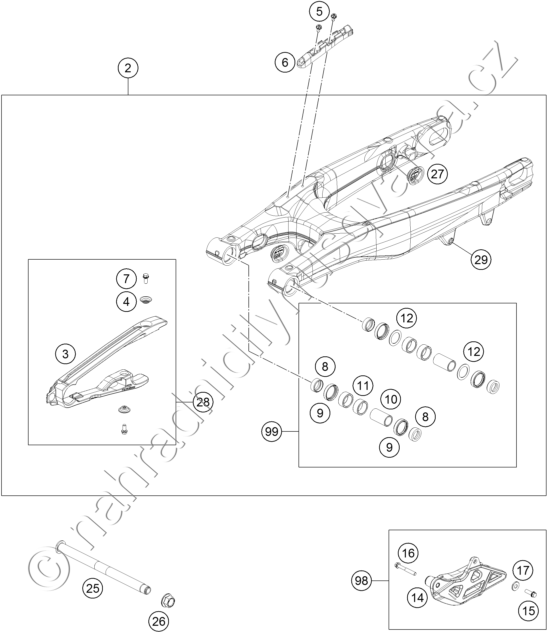

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 25004030044 SWINGARM CPL. 2016 |
20 989 Kč | |
| 3 | 77204066100 CHAIN SLIDING PROTECTION |
339 Kč | |
| 4 | 77304066050 CHAIN SLIDER BUSHING |
39 Kč | |
| 5 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 6 | 79004042000 BRAKE HOSE GUIDE |
82 Kč | |
| 7 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 8 | 77704034000 SUPPORT F. SHAFT SEAL RING 16 |
233 Kč | |
| 9 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 10 | 59404032000 BEARING SLEEVE 17X22X38,7 03 |
183 Kč | |
| 11 | 0618222812 NEEDLEBEAR HK2212V 22/28/12 MB |
199 Kč | |
| 12 | 54603036000 STOP DISK 22,2X31,7X1 |
39 Kč | |
| 14 | 79004070000 CHAIN GUIDE |
1 647 Kč | |
| 15 | 59009062019 SPECIAL SCREW M6X19 WS=8 10.9 |
31 Kč | |
| 16 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 17 | 77304070130 BUSH. F. CHAIN FAIL. PROT. 07 |
60 Kč | |
| 25 | 79004037000 SWING ARM M16X1,5 2016 |
1 192 Kč | |
| 26 | 54804038000 SELF LOCK.NUT M16X1,5 WS=19 03 |
246 Kč | |
| 27 | 77204041000 CLOSING COVER |
66 Kč | |
| 28 | 77204066010 CHAIN GUARD CPL. 11-15 |
307 Kč | |
| 29 | 54603055051 PRESS IN NUT M6 STEEL ZINC |
33 Kč | |
| 98 | 79004070010 CHAIN GUIDE KIT REAR 16 |
1 647 Kč | |
| 99 | 79004030010 SWING ARM REPAIR KIT SX-F |
2 155 Kč |
