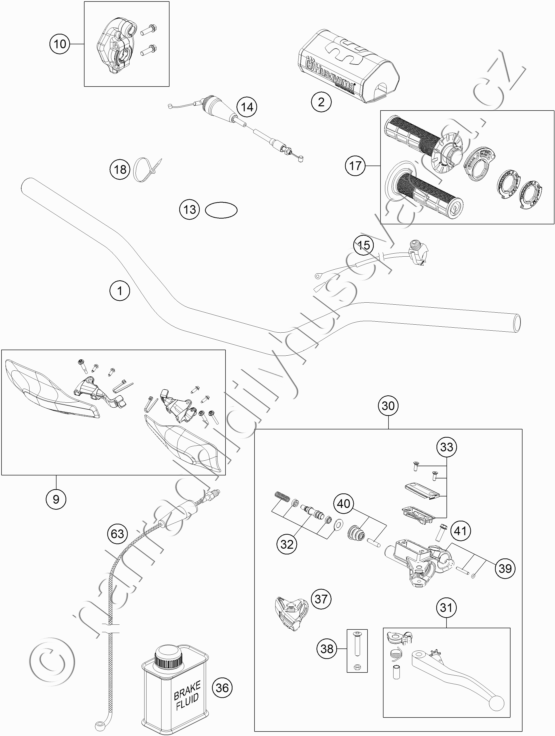

Díly pro HANDLEBAR, CONTROLS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 2500200100030 HANDLEBAR D=28MM |
2 819 Kč | |
| 2 | 80302602144 BAR PAD 2015 |
999 Kč | |
| 9 | 2500208204428 HANDGUARD RIGHT + LEFT WHITE |
738 Kč | |
| 10 | 50402010025 THROTTLE BODY CPL. |
818 Kč | |
| 13 | 0770049025 O-RING 49,00X2,50 NBR |
23 Kč | |
| 14 | 50402091000 THROTTLE CABLE |
894 Kč | |
| 15 | 50311089200 SHORT CIRCUIT BUTTON 02 |
626 Kč | |
| 17 | 79002021100 GRIP SET |
619 Kč | |
| 18 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 30 | 25002030044 MASTER CYLINDER DOT CPL. 9,0MM |
6 410 Kč | |
| 31 | 50302031300 CLUTCH LEVER CPL. 2009 |
863 Kč | |
| 32 | 25002032000 REP. KIT PISTON DOT 9,0MM |
2 046 Kč | |
| 33 | 25002033000 COVER HYDR. CLUTCH DOT CPL. |
533 Kč | |
| 36 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč | |
| 37 | 76502037000 PROTECT.CAP FOR LEVER PERCH 13 |
562 Kč | |
| 38 | 50302038200 LEVER SCREW SHORT CPL. 09 |
437 Kč | |
| 39 | 25002044000 CLAMP CPL. SEND BLASTED |
502 Kč | |
| 40 | 76502046000 PUSH ROD CPL. 13 |
635 Kč | |
| 41 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 63 | 25032063000 CLUTCH PIPE L=955MM |
2 195 Kč |
