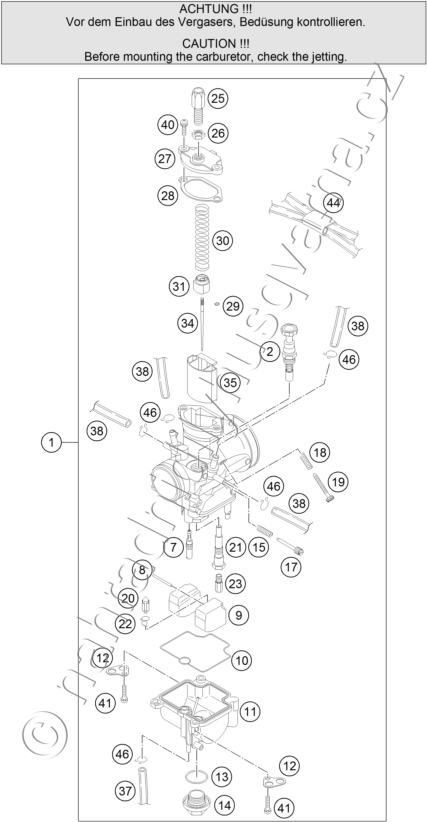

Díly pro CARBURETOR
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 47031001000 CARBURETOR KEIHIN PWK 28 2003 |
8 110 Kč | |
| 2 | 54631245000 STARTER PISTON CPL. |
1 814 Kč | |
| 7 | 54531607038 IDLE JET 38 KEIHIN |
220 Kč | |
| 7 | 54531607040 IDLE JET 40 KEIHIN |
220 Kč | |
| 7 | 54531607042 IDLE JET 42 KEIHIN |
220 Kč | |
| 7 | 54531607045 IDLE JET 45 KEIHIN |
220 Kč | |
| 7 | 54531607048 IDLE JET 48 KEIHIN |
220 Kč | |
| 7 | 54531607050 IDLE JET 50 KEIHIN |
220 Kč | |
| 8 | 57331008000 ARM PIN FLOAT |
60 Kč | |
| 9 | 47031009000 FLOAT CPL. PWK28 03 |
934 Kč | |
| 10 | 47031010000 FLOAT CHAMBER GASKET |
148 Kč | |
| 11 | 47031011000 FLOAT CHAMBER PWK28 03 |
1 610 Kč | |
| 12 | 54531612100 RETAINING PLATE FOR BLEEDER |
63 Kč | |
| 13 | 0770180230 O-RING 18,00X2,30 NBR 70 |
45 Kč | |
| 14 | 54531699000 PLUG M 18X1 |
347 Kč | |
| 15 | 54531615000 SPRING FOR ADJUSTMENT SCREW |
57 Kč | |
| 17 | 54531617000 ADJUSTMENT SCREW |
124 Kč | |
| 18 | 54631118000 SPRING |
108 Kč | |
| 19 | 54631219100 ADJUSTMENT SCREW M 5 |
174 Kč | |
| 20 | 47031020000 FLOAT NEEDLE CPL. |
469 Kč | |
| 21 | 47031021000 NEEDLE JET |
643 Kč | |
| 22 | 54531621000 CLAMP |
58 Kč | |
| 23 | 54531623115 MAIN JET 115 KEIHIN |
247 Kč | |
| 23 | 54531623118 MAIN JET 118 KEIHIN |
246 Kč | |
| 23 | 54531623120 MAIN JET 120 KEIHIN |
246 Kč | |
| 23 | 54531623122 MAIN JET 122 KEIHIN |
246 Kč | |
| 23 | 54531623125 MAIN JET 125 KEIHIN |
246 Kč | |
| 23 | 54531623128 MAIN JET 128 KEIHIN |
246 Kč | |
| 23 | 54531623130 MAIN JET 130 KEIHIN |
246 Kč | |
| 23 | 54531623132 MAIN JET 132 KEIHIN |
246 Kč | |
| 23 | 54531623135 MAIN JET 135 KEIHIN |
246 Kč | |
| 25 | 54531625000 ADJUSTMENT SCREW M 6X0,75 |
119 Kč | |
| 26 | 52031126000 HEXAGON NUT M 6X0,75 DIN0439 |
23 Kč | |
| 27 | 47031027000 CARBURETOR COVER PWK28 03 |
701 Kč | |
| 28 | 47031028000 CARBURETOR COVER GASKET PWK28 |
114 Kč | |
| 29 | 54531629000 CLIP FOR JET NEEDLE |
47 Kč | |
| 30 | 47031030000 THROTTLE VALVE SPRING |
191 Kč | |
| 31 | 47031031000 SPRING CAP |
129 Kč | |
| 34 | 47031034000 JET NEEDLE N5HG KEIHIN |
251 Kč | |
| 34 | 47031034100 JET NEEDLE N5HF KEIHIN |
251 Kč | |
| 34 | 47031034200 JET NEEDLE N5HH KEIHIN |
251 Kč | |
| 35 | 47031035000 THROTTLE VALVE 3,5 |
4 911 Kč | |
| 37 | 52031137001 PVC-HOSE 3X5MM |
38 Kč | |
| 38 | 31007007101 PVC-HOSE 4X6MM |
76 Kč | |
| 40 | 0016040133 HH COLLAR SCREW M 4X13 WS=6 |
18 Kč | |
| 41 | 0985040163 FLAT HEAD SCREW DIN7985-M 4X16 |
17 Kč | |
| 44 | 47031084000 PLASTIC-CLIP |
310 Kč | |
| 46 | 54531696000 CLAMP 6 MM |
36 Kč |
