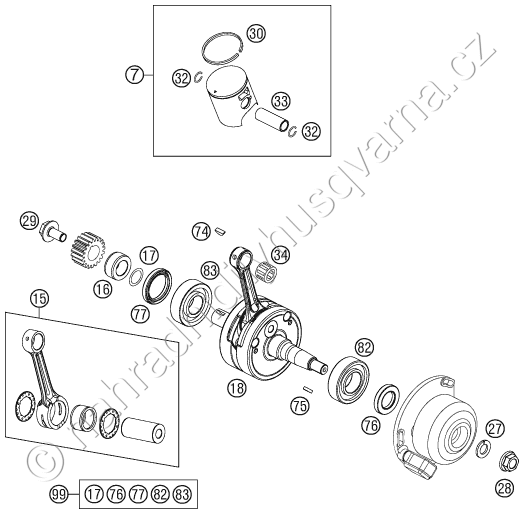

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 47230007000 I PISTON CPL. SIZE 1 |
2 902 Kč | |
| 7 | 47230007000 II PISTON CPL. SIZE 2 |
2 902 Kč | |
| 15 | 47030015300 CONNECTING ROD REPAIR SET |
5 218 Kč | |
| 16 | 47030016000 SPACER SLEEVE 85 SX 2003 |
493 Kč | |
| 17 | 0770020180 O-RING 18,77X1,78 NBR 70 |
21 Kč | |
| 18 | 47030118000 CRANKSHAFT CPL. |
12 702 Kč | |
| 27 | 50230029012 LOCKING RING VSK 12 |
25 Kč | |
| 28 | 49030021000 COLLAR NUT M12X1 R/S |
100 Kč | |
| 29 | 47032019000 HH SCREW W. COLLAR M10X1,25X20 |
401 Kč | |
| 30 | 47030030000 PISTON RING 85 SX 2003 |
648 Kč | |
| 32 | 47030074000 WIRE LOCK RING 85 SX 2003 |
28 Kč | |
| 33 | 47030033000 PISTON PIN 85 SX 2003 |
310 Kč | |
| 34 | 47030034000 NEEDLE BEARING KBK 14X18X17 03 |
687 Kč | |
| 74 | 0888040050 WOODRUFF KEY DIN 6888 4X5X13 |
21 Kč | |
| 75 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč | |
| 76 | 47030076100 SEAL SHAFT RING 20X35X6 BTSL |
143 Kč | |
| 77 | 0760304261 OIL SEAL |
424 Kč | |
| 82 | 49030023000 CYLINDRICAL ROLLER BEARING NJ205 |
1 243 Kč | |
| 83 | 47030083000 BALL BEARING 22X52X15 |
456 Kč | |
| 99 | 00050002318 CRANKSHAFT REP. KIT 85 |
2 229 Kč |
