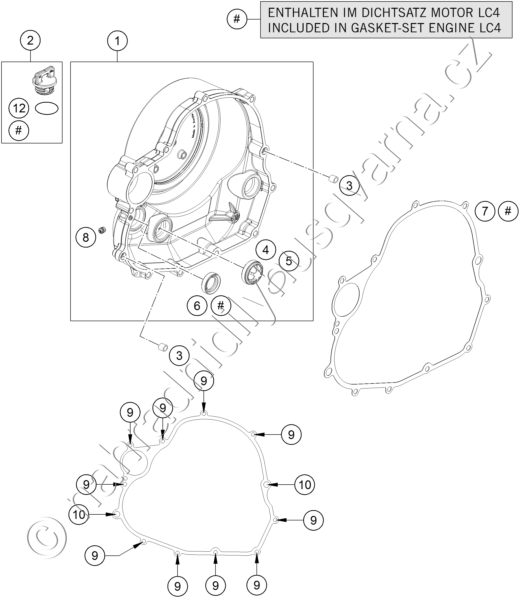

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 75030601044KA CLUTCH COVER CPL. |
5 803 Kč | |
| 2 | 58030020100 OIL PLUG CPL. M24X3 |
63 Kč | |
| 3 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 4 | 59030019200 OIL SIGHT GLASS |
318 Kč | |
| 5 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 |
29 Kč | |
| 6 | 0760172871 SHAFT SEAL RING 17X28X7B VITON |
95 Kč | |
| 7 | 75030025000 CLUTCH CASE GASKET 07 |
324 Kč | |
| 8 | 59030296000 SCREW PLUG |
151 Kč | |
| 9 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 10 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 12 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč |
