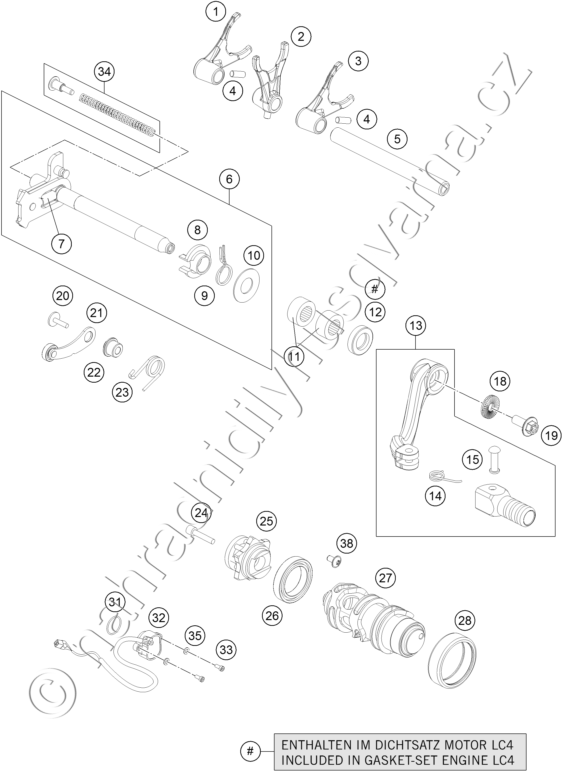

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 75034002100 SHIFT FORK F. SLIDINGGEAR 5 12 |
945 Kč | |
| 2 | 75034001100 SHIFT FORK F. SLIDINGG. 3/4 12 |
945 Kč | |
| 3 | 75034003100 SHIFT FORK F. SLIDINGGEAR 6 12 |
945 Kč | |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 |
50 Kč | |
| 5 | 75034019100 SHIFT FORK SHAFT |
241 Kč | |
| 6 | 75034005133 SHIFT SHAFT ASSY |
2 050 Kč | |
| 7 | 56534013100 TENSIONING SPRING 0,8MM |
44 Kč | |
| 8 | 54634020000 SPRING GUIDE |
116 Kč | |
| 9 | 54834014000 RETURN SPRING 03 |
66 Kč | |
| 10 | 75034050000 STOP DISK 14X30X1,5 STEEL |
47 Kč | |
| 11 | 54632095000 NEEDLE SLEEVE HK 1412 14X20X12 |
97 Kč | |
| 12 | 0760142461 SHAFT SEAL RING 14X24X6B VITON |
95 Kč | |
| 13 | 75034031000 SHIFT LEVER CPL. 07 |
1 464 Kč | |
| 14 | 75034032000 SHIFTING LEVER SPRING |
52 Kč | |
| 15 | 54634031050 BOLT 6X25 FOR SHIFT LEVER |
86 Kč | |
| 18 | 50233041500 PAIR NORDLOCK WASHER M6 |
39 Kč | |
| 19 | 0024060156S HH COLLAR SCREW M6X15 TX30 |
12 Kč | |
| 20 | 0024060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 21 | 75034024044 LOCKING LEVER CPL. 07 |
246 Kč | |
| 22 | 75034052000 SLEEVE FOR LOCKING LEVER 07 |
66 Kč | |
| 23 | 60034023000 ARRESTING LEVER SPRING 03 |
47 Kč | |
| 24 | 0012060303 AH SCREW DIN6912 M6X30 8.8 |
28 Kč | |
| 25 | 75034015000 SHIFT DRUM LOCATING CPL. 07 |
768 Kč | |
| 26 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
| 27 | 76034112044 SHIFTING DRUM CPL. |
1 939 Kč | |
| 28 | 0618354212 NEEDLE BEAR HK3512 35X42X12 |
180 Kč | |
| 31 | 07700240251 O-RING 24.00X2.50 VITON |
39 Kč | |
| 32 | 60211023100 GEAR-POSITION SENSOR |
3 175 Kč | |
| 33 | 0984050163S CYL. SCREW DIN6912 M5X16 8.8 |
17 Kč | |
| 34 | 75034007044 SPRING F. SHIFTING SHAFT CPL. |
233 Kč | |
| 35 | 0125050003 WASHER DIN0125-A 5,3 |
17 Kč | |
| 38 | 073800501002 PAN HEAD SCREW M5X10 TX25 |
17 Kč |
