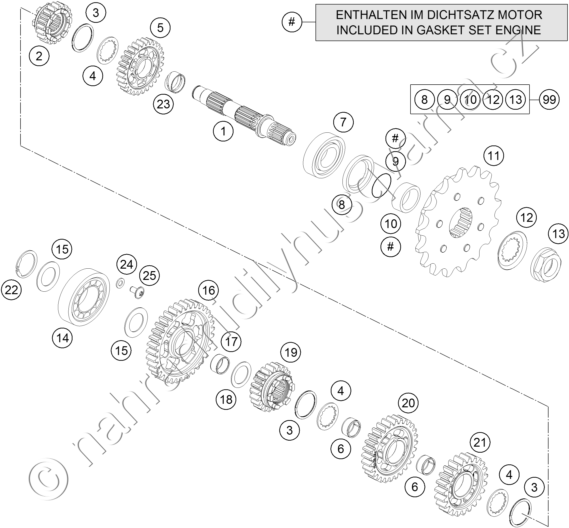

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 76233010000 COUNTER SHAFT 07 |
4 927 Kč | |
| 2 | 75033016000 SLIDING GEAR 6TH G. 07 |
1 997 Kč | |
| 3 | 0471025000 CIRCLIP D25 |
132 Kč | |
| 4 | 56533016300 STOP DISK 22,7 X 32 X 1,5 |
102 Kč | |
| 5 | 76233012100 IDLER 2. GEAR |
2 160 Kč | |
| 6 | 0405222613 NEEDLE BEAR. K 22X26X13 TN |
132 Kč | |
| 7 | 49030023100 CYL.ROLLER BEARING NJ205 C4 |
1 392 Kč | |
| 8 | 0760324773 RADIAL SHAFT SEAL 32X47X7BSL VITON |
151 Kč | |
| 9 | 0770020220 O-RING 25,12X1,78 NBR70 |
17 Kč | |
| 10 | 54633014100 SPACER BUSHING 12MM |
459 Kč | |
| 11 | 58033029115 ENGINE SPROCKET 15 T DAMPED |
967 Kč | |
| 11 | 58033029116 ENGINE SPROCKET 16 T DAMPED |
967 Kč | |
| 11 | 58033029117 ENGINE SPROCKET 17 T DAMPED |
967 Kč | |
| 12 | 51033031000 LOCKING PLATE |
50 Kč | |
| 13 | 58033032200 SPROCKET NUT M20X1.5 |
228 Kč | |
| 14 | 0625060044 BALL BEARING 6004 DDUN C4 |
228 Kč | |
| 15 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 16 | 75033011000 IDLER GEAR 1ST GEAR 07 |
1 552 Kč | |
| 17 | 56533098000 NEEDLE BEARING K22X26X13H |
167 Kč | |
| 18 | 54603036000 STOP DISK 22,2X31,7X1 |
39 Kč | |
| 19 | 75033015000 5TH GEAR COUNTERSHAFT 07 |
1 997 Kč | |
| 20 | 75033013000 IDLER GEAR 3.G 07 |
1 347 Kč | |
| 21 | 75033014000 IDLER GEAR 4.G 07 |
1 347 Kč | |
| 22 | 0471200120 CIRCLIP DIN471 20X1,2 |
28 Kč | |
| 23 | 76233022200 BUSHING 25X28X13 |
2 375 Kč | |
| 24 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 25 | 073800501002 PAN HEAD SCREW M5X10 TX25 |
17 Kč | |
| 99 | 00050000946 COUNTER SHAFT REP.KIT 690 |
717 Kč |
