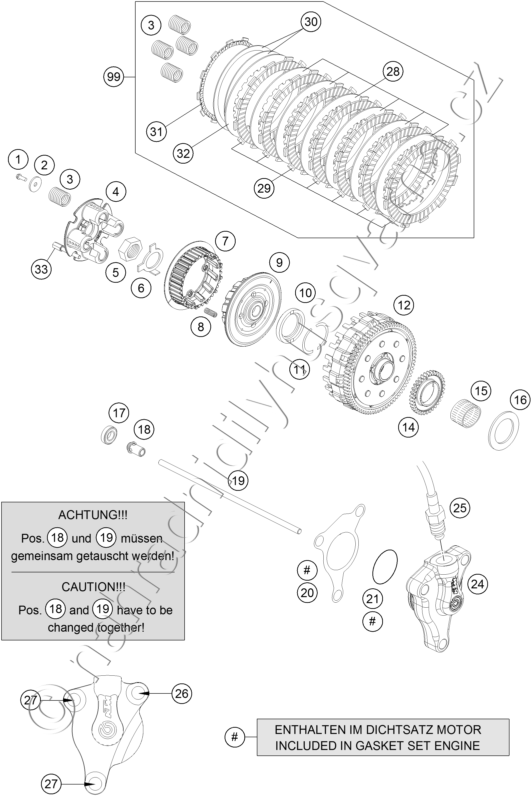

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0025050256 HH COLLAR SCREW M5X25 ISA30 |
20 Kč | |
| 2 | 75032006000 SPRING RING 07 |
60 Kč | |
| 3 | 58532080001 CLUTCH SPRING 3,0X33,5 |
94 Kč | |
| 4 | 75032003000 PRESSURE CAP |
2 635 Kč | |
| 5 | 60036073150 HEX NUT M20X1,. H=6MM |
130 Kč | |
| 6 | 47032020000 THRUST WASHER 20X32X2 |
61 Kč | |
| 7 | 75032002002 INNER CLUTCH HUB MOVABLE |
6 170 Kč | |
| 8 | 75032033000 CLUTCH RELEASE SPRING |
156 Kč | |
| 9 | 75032002001 INNER CLUTCH HUB FIXED |
5 328 Kč | |
| 10 | 75032009000 STEPPED WASHER 07 |
166 Kč | |
| 11 | 75032007000 HALF-WASHER 07 |
227 Kč | |
| 12 | 75032001144 CLUTCH CAGE CPL. 79T |
18 720 Kč | |
| 14 | 75032050001 OIL PUMP DRIVE WHEEL 07 |
57 Kč | |
| 15 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
| 16 | 75032017000 WASHER 26X40X2 07 |
95 Kč | |
| 17 | 0625060016 DEEP GROOVE BALL BEARING 6001.2RSR C3 |
219 Kč | |
| 18 | 75032055100 PRESSURE BOLT 08 |
175 Kč | |
| 19 | 75032054200 PUSH ROD 08 |
603 Kč | |
| 20 | 59032065100 GASKET F. OUTPUT CYLINDER |
45 Kč | |
| 21 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
| 24 | 79432061044 OUTPUT CYL. DOT KPL. 27MM |
4 382 Kč | |
| 25 | 54732063100 CLUTCH PIPE 250/300 2003 |
1 969 Kč | |
| 26 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 27 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 28 | 75032112000 STEEL DISK 1,5 MM LC4 ´07 |
272 Kč | |
| 29 | 58332011300 LINING DISK 2,7MM FCC 02 |
462 Kč | |
| 30 | 58632016000 RONDELLA ANTIVIBRAZIONE SET |
1 201 Kč | |
| 31 | 75032111100 LINING DISC CUT OUT |
813 Kč | |
| 32 | 75032112100 STEEL DISK 1,5MM NITRIDED |
382 Kč | |
| 33 | 75032032000 HOLDING SCREW GMB-M5X35 |
116 Kč | |
| 99 | 75032011110 CLUTCH KIT 690 LC4 08-14 |
7 002 Kč |
