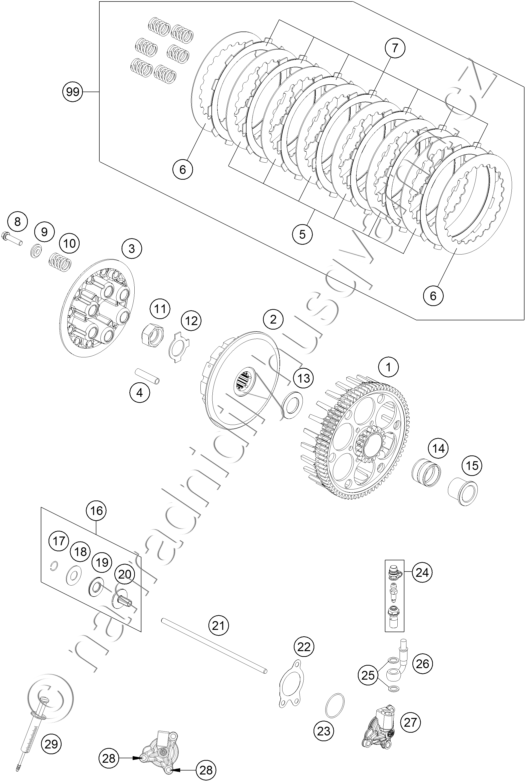

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79232001073 CLUTCH CAGE SX |
6 975 Kč | |
| 2 | 79232002100 CLUTCH HUB |
1 670 Kč | |
| 3 | 79232003000 PRESSURE CAP |
690 Kč | |
| 4 | 79232004000 SLEEVE 7.95X35 |
66 Kč | |
| 5 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 |
183 Kč | |
| 6 | 59032010100 INTERMEDIATE DISC 1MM 2002 |
146 Kč | |
| 7 | 59032011100 LINING DISC 2MM 04 |
372 Kč | |
| 8 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 9 | 59032006000 SPRING RETAINER 6,2X12X18X3,6 |
58 Kč | |
| 10 | 52332005200 CLUTCH SPRING |
227 Kč | |
| 11 | 77232019000 HEXAGON NUT M18X1,5 |
82 Kč | |
| 12 | 77232018000 SHEET METAL LOCK |
94 Kč | |
| 13 | 77232009100 WASHER 21,8 X 37 X 3 |
158 Kč | |
| 14 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
| 15 | 77232015000 INNER RING |
441 Kč | |
| 16 | 78032057044 PRESSURE PIECE CPL. 08 |
512 Kč | |
| 17 | 0993012000 CIRCLIP DIN7993-RW12 |
5 Kč | |
| 18 | 54637098200 AXIAL WASHER AS1226 12X26X1 |
57 Kč | |
| 19 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 |
150 Kč | |
| 20 | 78032057000 PRESSURE PIECE |
340 Kč | |
| 21 | 79232054000 PUSH ROD |
300 Kč | |
| 22 | 79232065000 GASKET FOR OUTPUT CYLINDER |
79 Kč | |
| 23 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
| 24 | 25032062000 HOLLOW SCREW CPL. M8 |
629 Kč | |
| 25 | 0603082121 SEAL RING CU DIN7603- 8X12X1 |
18 Kč | |
| 26 | 25032063000 CLUTCH PIPE L=955MM |
2 195 Kč | |
| 27 | 25032061044 OUTPUT CYL. DOT CPL. 27MM M8 |
4 382 Kč | |
| 28 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 29 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 99 | 79032010010 CLUTCH KIT 250 SX-F |
5 033 Kč |
