Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79033010000 COUNTERSHAFT |
3 109 Kč | |
| 2 | 79033012100 IDLER GEAR 2.G |
2 160 Kč | |
| 3 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. |
103 Kč | |
| 4 | 79033041000 STOP DISC 25X0,8X30X30X7H |
129 Kč | |
| 5 | 0471025001 CIRCLIP XDNS-25 S02 |
132 Kč | |
| 6 | 79033015300 SLIDING GEAR 5.G |
2 160 Kč | |
| 7 | 54833043000 STOP DISC 25X0,8X30X30X7H |
73 Kč | |
| 8 | 79033013200 LOSRAD 3. GANG |
2 160 Kč | |
| 9 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED |
175 Kč | |
| 10 | 79033014100 SLIDING GEAR 4.G |
2 160 Kč | |
| 11 | 54833080000 STOP DISC 20,2X30X1 |
73 Kč | |
| 12 | 50033098000 NEEDLE BEARING K20X24X10 |
337 Kč | |
| 13 | 79033011000 IDLER GEAR 1TH GEAR |
2 473 Kč | |
| 14 | 77233020000 STOP DISK 17,2X30X1,3 |
129 Kč | |
| 15 | 0625062035 BALL BEARING 6203 JR2 C3 |
215 Kč | |
| 16 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 17 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč | |
| 18 | 49030023000 CYLINDRICAL ROLLER BEARING NJ205 |
1 243 Kč | |
| 19 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR |
65 Kč | |
| 20 | 0770020220 O-RING 25,12X1,78 NBR70 |
17 Kč | |
| 21 | 78133014000 SPACER SLEEVE COUNTER |
414 Kč | |
| 22 | 79233029013 SPROCKET 13T |
360 Kč | |
| 22 | 79233029014 SPROCKET 14T |
360 Kč | |
| 23 | 59033034044 SCREW 10.9+SPRING WASHER |
94 Kč | |
| 24 | 0471170015 CIRCLIP DIN 0471-17X1, 5 |
21 Kč |
Další schémata
BALANCER SHAFT
|
CLUTCH
|
CLUTCH COVER
|
COOLING SYSTEM
|
CRANKSHAFT, PISTON
|
CYLINDER
|
CYLINDER HEAD
|
ELECTRIC STARTER
|
ENGINE CASE
|
IGNITION SYSTEM
|
LUBRICATING SYSTEM
|
SHIFTING MECHANISM
|
THROTTLE BODY
|
TIMING DRIVE
|
TRANSMISSION I - MAIN SHAFT
|
TRANSMISSION II - COUNTERSHAFT
|
VALVE DRIVE
|
WATER PUMP
|

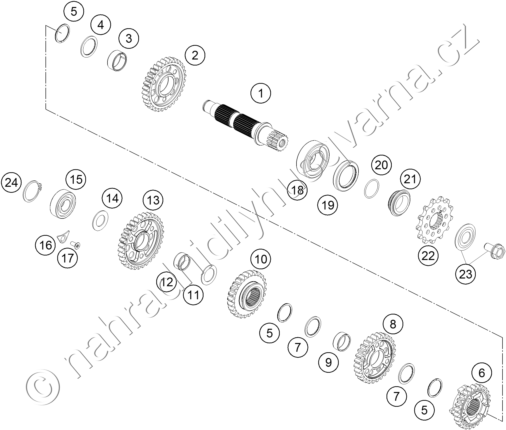

TRANSMISSION II - COUNTERSHAFT
