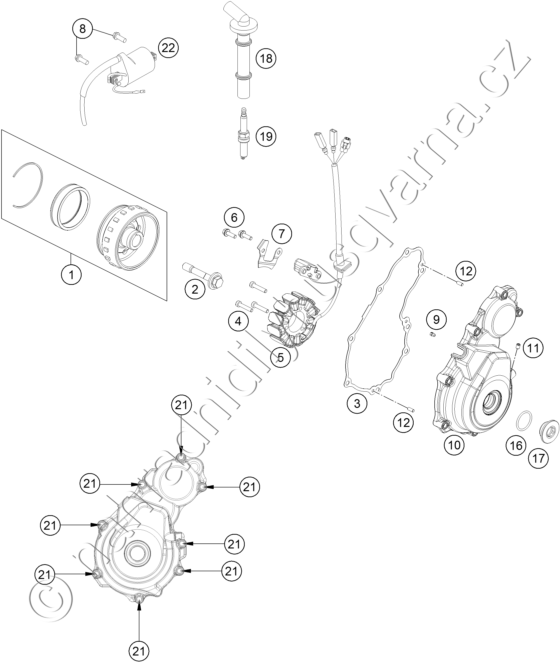

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79239005044 ROTOR EFI CPL. |
12 650 Kč | |
| 2 | 77339010100 FLYWHEEL SCREW |
87 Kč | |
| 3 | 79230040000 IGNITION COVER GASKET |
177 Kč | |
| 4 | 0012050253S BOLT DIN 6912 - M5X25 SS |
18 Kč | |
| 5 | 79239004000 STATOR |
4 425 Kč | |
| 6 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 7 | 79230002050 CABLE HOLDER PLATE |
180 Kč | |
| 8 | 0026060186 COLLAR SCREW M6X18 ISA30 |
18 Kč | |
| 9 | 80030058060 OIL JET \'\'60\'\' M4 |
236 Kč | |
| 10 | 79230602000KA IGNITION COVER |
3 103 Kč | |
| 11 | 0913050063S THREAD PIN DIN 913 M5X6 |
15 Kč | |
| 12 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 16 | 07700240251 O-RING 24.00X2.50 VITON |
39 Kč | |
| 17 | 7723000216068 LOCK SCREW M24X1,5 |
1 102 Kč | |
| 18 | 77739090000 SPARK PLUG CONNECTOR |
1 052 Kč | |
| 19 | 77239093000 PLUG NGK LMAR9AI - 8 |
735 Kč | |
| 21 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 22 | 58439006000 IGNITIONCOIL IG3826 KOKUSAN\'96 |
1 278 Kč |
