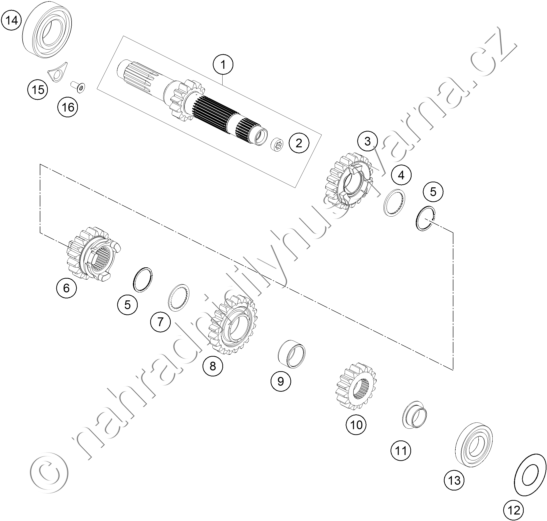

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79033001000 MAIN SHAFT CPL. |
3 042 Kč | |
| 2 | 78033001110 BUSHING |
211 Kč | |
| 3 | 79033004144 IDLER GEAR 4.G CPL. |
2 160 Kč | |
| 4 | 79033040000 STOP DISC 22X0,8X30X26X7H |
129 Kč | |
| 5 | 0471022000 CIRCLIP XDNS-22 S02 |
132 Kč | |
| 6 | 79033003200 SLIDING GEAR 3. G |
2 160 Kč | |
| 7 | 79033042000 STOP DISC 22X0,8X30X26X7H |
129 Kč | |
| 8 | 79033005300 IDLER GEAR 5.G |
2 160 Kč | |
| 9 | 0405202413 NEEDLE BEAR. K20X24X13 |
374 Kč | |
| 10 | 79033002000 SOLID GEAR 2.G |
866 Kč | |
| 11 | 77733027000 BUSHING |
578 Kč | |
| 12 | 77233088000 SPACER SHIM 21X42X0.2 |
238 Kč | |
| 13 | 0625160041 BALL BEARING TM 16004 C4 |
310 Kč | |
| 14 | 0625062054 BALL BEARING 6205 C3 NTN |
292 Kč | |
| 15 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 16 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč |
