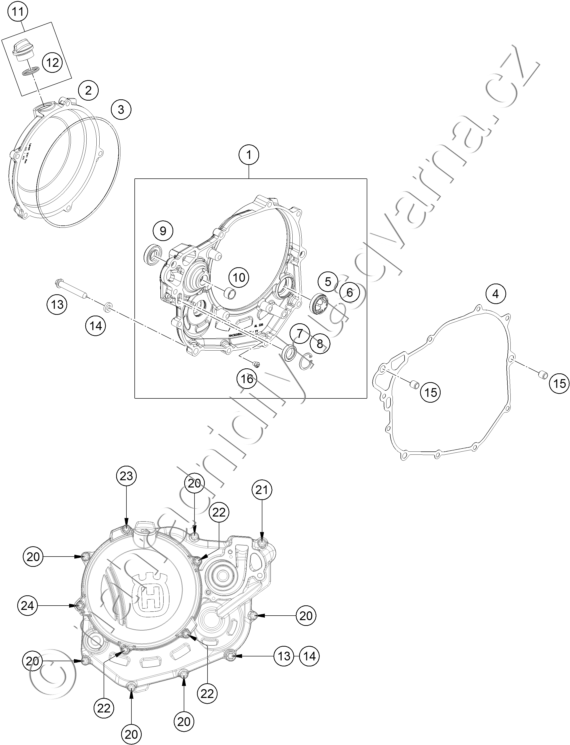

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79430001044 CLUTCH COVER CPL. |
5 803 Kč | |
| 2 | 79430626000KA OUTER CLUTCH COVER |
1 867 Kč | |
| 3 | 78130027000 GASKET - CLUTCH OUTER COVER |
134 Kč | |
| 4 | 79430025000 INNER CLUTCH COVER GASKET |
430 Kč | |
| 5 | 59030019200 OIL SIGHT GLASS |
318 Kč | |
| 6 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 |
29 Kč | |
| 7 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
| 8 | 0472024120 CIRCLIP DIN0472-24X1.2 |
17 Kč | |
| 9 | 0760123073 SHAFT SEAL RING 12X30X7 PTFE |
212 Kč | |
| 10 | 79430057010 FRICTION BEAR. BUSH BALANC.SH. |
602 Kč | |
| 11 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
| 12 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
| 13 | 78030080000 LOCATING SCREW |
60 Kč | |
| 14 | 58030081000 CU-SEAL RING 8 X 14 X 3 |
42 Kč | |
| 15 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 16 | 57031523145 MAIN JET 145 |
102 Kč | |
| 20 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 21 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 22 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 23 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 24 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč |
