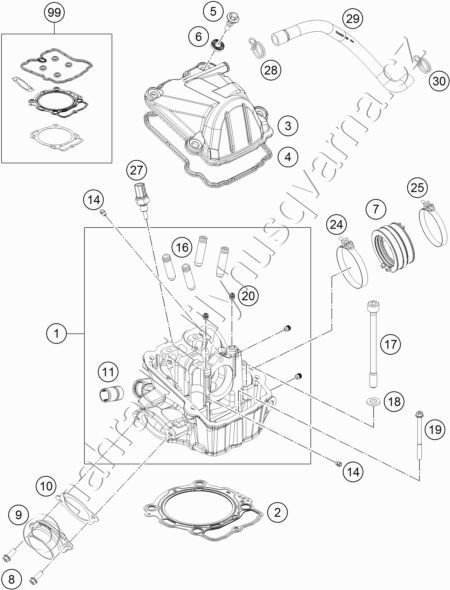

Díly pro CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79436020044 CYLINDER HEAD CPL. |
13 388 Kč | |
| 2 | 79430036010 CYLINDER HEAD GASKET (DN95) |
953 Kč | |
| 3 | 7943605200033 VALVE COVER |
919 Kč | |
| 4 | 79436053000 VALVE COVER GASKET |
138 Kč | |
| 5 | 78036054100 VALVE COVER SCREW |
122 Kč | |
| 6 | 75036052010 DECOUPLING ELEMENT |
42 Kč | |
| 7 | 79236044100 RUBBER CUP |
517 Kč | |
| 8 | 0025060166S HH COLLAR SCREW M6X16 TX30 SL |
29 Kč | |
| 9 | 78136139000 EXHAUST FLANGE |
1 248 Kč | |
| 10 | 78036041000 EXHAUST FLANGE GASKET |
195 Kč | |
| 11 | 58030010200 SCREW IN NOZZLE M20X1,5 |
166 Kč | |
| 14 | 60030063070 OIL JET 70 M5 |
124 Kč | |
| 16 | 78136025001 VALVE GUIDE INTAKE |
358 Kč | |
| 17 | 78030044000 CYL. HEAD SCREW M10X1,25 L=125 |
166 Kč | |
| 18 | 77336089010 WASHER 19X10.5X2.5 |
69 Kč | |
| 19 | 0025060706 HH COLLAR SCREW M6X70 TX30 |
29 Kč | |
| 20 | 59030296000 SCREW PLUG |
151 Kč | |
| 24 | 61036047000 HOSE CLAMP GEMI 63MM 05 |
169 Kč | |
| 25 | 77236048000 HOSE CLAMP GEMI 58MM |
169 Kč | |
| 27 | 79435047000 WATER TEMPERATURE SENSOR |
552 Kč | |
| 28 | 60306082000 CLAMP YDNAC 10173 (19MM) |
26 Kč | |
| 29 | 79430087000 ENGINE BREATHING HOSE |
389 Kč | |
| 30 | 58431082100 YDNAC-CLAMP 10173 (16MM) \'98 |
21 Kč | |
| 99 | 79430097000 CYL. GASKET SET 450 SX-F 16 |
1 504 Kč |
