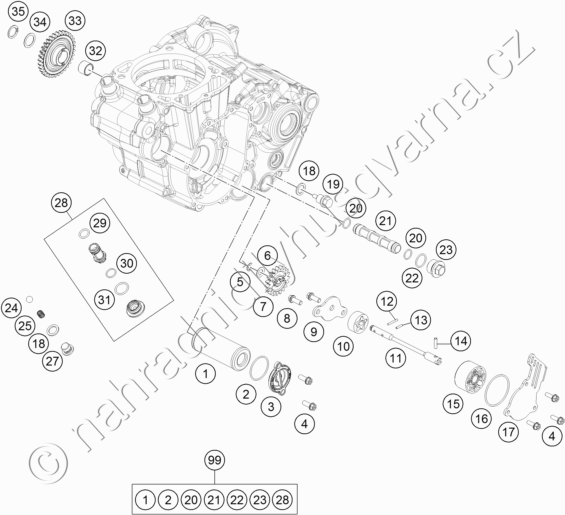

Díly pro LUBRICATING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77338005100 OIL FILTER |
198 Kč | |
| 2 | 07703305178 O-RING 33,05X1,78 |
42 Kč | |
| 3 | 77338041200 OIL FILTER COVER 08 |
223 Kč | |
| 4 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 5 | 0799060000 TAB WASHER DIN6799-RS 6,0 |
17 Kč | |
| 6 | 58038007755 STOP DISK 8,1 X 15 X 0,5 |
21 Kč | |
| 7 | 79438001019 OIL PUMP SPROCKET 19T |
132 Kč | |
| 8 | 0025060166S HH COLLAR SCREW M6X16 TX30 SL |
29 Kč | |
| 9 | 79438003000 OIL PUMP COVER |
400 Kč | |
| 10 | 59038011112 OILPUMP ROTOR-SET 12MM CPL. |
708 Kč | |
| 11 | 79438002000 OIL PUMP SHAFT |
419 Kč | |
| 12 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 |
20 Kč | |
| 13 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 |
19 Kč | |
| 14 | 0402041580 NEEDLE ROLLER NRB 4X15.8 G2 |
36 Kč | |
| 15 | 61238011100 ROTOR SET 22MM |
1 041 Kč | |
| 16 | 0770440020 O-RING 44,00X2,00 VITON |
50 Kč | |
| 17 | 79438004100 OIL PUMP COVER |
961 Kč | |
| 18 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 19 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 20 | 07701250151 O-RING 12,5X1,5 VITON V75 |
76 Kč | |
| 21 | 59038016100 OIL SCREEN |
278 Kč | |
| 22 | 0770020170 O-RING 17,17X1,78 GLO |
18 Kč | |
| 23 | 59038017100 PLUG M20X1,5 WS=13 |
252 Kč | |
| 24 | 0401090003 BALL DIN5401-9 |
33 Kč | |
| 25 | 79438026000 PRESSURE SPRING |
89 Kč | |
| 27 | 78036024000 PLUG SCREW SAS M12X1,5 |
122 Kč | |
| 28 | 78138015001 OIL SCREEN CPL. |
483 Kč | |
| 29 | 0770012021 O-RING 12X2 VITON GREEN |
25 Kč | |
| 30 | 0770125015 O-RING 12,5X1,5 NBR |
20 Kč | |
| 31 | 0770170200 O-RING 17,00X2,00 |
18 Kč | |
| 32 | 79438001010 NEEDLE BEARING INNER RING |
203 Kč | |
| 33 | 79438001033 IDLER WHEEL 33T |
166 Kč | |
| 34 | 0988162205 THRUST WASH. DIN0988-16X22X0,5 |
17 Kč | |
| 35 | 0471150010 CIRCLIP DIN0471-15X1 |
29 Kč | |
| 99 | 79438015010 OILFILTER SERVICEKIT SX-F |
1 173 Kč |
