Díly pro CARBURETOR

Číslo dílu
na schématu		Kód dílu
Název dílu		Cena za kus
vč. DPH		Doporučený
počet
1 55431001244
CARBURETOR TMX38		 10 863 Kč
2 55431035040
THROTTLE SLIDE \'\'4.0\'\'		 3 525 Kč
3 55431051050
STARTING JET \'\'50\'\'		 318 Kč
3 55431051080
STARTING JET \'\'80\'\'		 318 Kč
4 55431021000
NEEDLE JET \'\'R-8\'\'		 305 Kč
4 55431021400
NEEDLE JET S-4		 305 Kč
5 31007007101
PVC-HOSE 4X6MM		 76 Kč
5 52031137001
PVC-HOSE 3X5MM		 38 Kč
6 55431245000
START PISTON		 639 Kč
7 55431699000
SCREW PLUG CPL.		 494 Kč
8 0014050163
HH COLLAR SCREW M 5X16 WS=6		 47 Kč
9 55431017000
ADJUSTER & COMPRESSION SPRING		 286 Kč
1055431019000

 Na dotaz
1
11 55431034050
RING		 94 Kč
12 55431009000
FLOAT & PIN		 1 596 Kč
13 55431011000
FLOAT CHAMBER CPL.		 2 521 Kč
14 55431030050
GUIDE HOLDER		 318 Kč
15 55431027000
CARBURETTOR COVER		 799 Kč
16 55431030000
SLIDING SPRING MIKUNI		 191 Kč
17 55431034060
LOCK RING		 61 Kč
18 55431020000
FLOAT NEEDLE CPL.		 639 Kč
19554831025000

 Na dotaz
2
20 55431029100
MAIN JET \'\'100\'\'		 190 Kč
20 55431029155
MAIN JET \'\'155\'\'		 190 Kč
20 55431029400
MAIN JET \'\'400\'\'		 190 Kč
20 55431029410
MAIN JET \'\'410\'\'		 190 Kč
20 55431029420
MAIN JET \'\'420\'\'		 190 Kč
20 55431029430
MAIN JET \'\'430\'\'		 190 Kč
20 55431029440
MAIN JET \'\'440\'\'		 190 Kč
20 55431029450
MAIN JET \'\'450\'\'		 190 Kč
20 55431029460
MAIN JET \'\'460\'\'		 190 Kč
20 55431029470
MAIN JET \'\'470\'\'		 190 Kč
20 55431029480
MAIN JET \'\'480\'\'		 190 Kč
20 55431029490
MAIN JET \'\'490\'\'		 190 Kč
20 55431029500
MAIN JET \'\'500\'\'		 190 Kč
20 55431029520
MAIN JET \'\'520\'\'		 190 Kč
20 55431029540
MAIN JET \'\'540\'\'		 190 Kč
20 55431029560
MAIN JET \'\'560\'\'		 190 Kč
20 55431029580
MAIN JET \'\'580\'\'		 190 Kč
20 55431029600
MAIN JET \'\'600\'\'		 190 Kč
21 55431007150
IDLING JET \'\'15\'\'		 254 Kč
21 55431007175
IDLING JET \'\'17.5\'\'		 254 Kč
21 55431007225
IDLE JET \"22,5\"		 220 Kč
21 55431007250
IDLE JET \"25\"		 220 Kč
21 55431007275
IDLE JET \"27,5\"		 220 Kč
21 55431007300
IDLING JET \'\'30\'\'		 254 Kč
21 55431007325
IDLING JET \'\'32.5\'\'		 254 Kč
21 55431007350
IDLING JET \'\'35\'\'		 254 Kč
21 55431007375
IDLING JET \'\'37.5\'\'		 254 Kč
21 55431007400
IDLING JET \'\'40\'\'		 254 Kč
21 55431007425
IDLING JET \'\'42.5\'\'		 254 Kč
21 55431007450
IDLING JET \'\'45\'\'		 254 Kč
21 55431007475
IDLING JET \'\'47.5\'\'		 254 Kč
21 55431007500
IDLING JET \'\'50\'\'		 254 Kč
21 55431007525
IDLING JET \'\'52.5\'\'		 254 Kč
2255431073000

 Na dotaz
3
23 55431017010
COMPRESSION SPRING ADJUSTER		 108 Kč
2455431019010

 Na dotaz
1
25 55431012000
PLATE		 63 Kč
26 55431010000
HOLDER		 190 Kč
30 55431034000
JET NEEDLE \'\'6BFY42-71\'\'		 254 Kč
30 55431034100
JET NEEDLE \'\'6BFY42-72\'\'		 254 Kč
30 55431034200
JET NEEDLE \'\'6BFY42-73\'\'		 254 Kč
30 55431034300
JET NEEDLE \'\'6BFY42-74\'\'		 254 Kč
30 55431034400
JET NEEDLE \'\'6BFY42-75\'\'		 254 Kč
30 55431034500
JET NEEDLE \'\'6BFY42-76\'\'		 254 Kč
30 55431134000
JET NEEDLE \'\'6BFY43-71\'\'		 254 Kč
30 55431134100
JET NEEDLE \'\'6BFY43-72\'\'		 254 Kč
30 55431134200
JET NEEDLE \'\'6BFY43-73\'\'		 254 Kč
30 55431134300
JET NEEDLE \'\'6BFY43-74\'\'		 254 Kč
30 55431134400
JET NEEDLE \'\'6BFY43-75\'\'		 254 Kč
30 55431134500
JET NEEDLE \'\'6BFY43-76\'\'		 254 Kč
30 55431234000
JET NEEDLE \'\'6BFY44-71\'\'		 254 Kč
30 55431234100
JET NEEDLE \'\'6BFY44-72\'\'		 254 Kč
30 55431234200
JET NEEDLE \'\'6BFY44-73\'\'		 254 Kč
30 55431234300
JET NEEDLE \'\'6BFY44-74\'\'		 254 Kč
30 55431234400
JET NEEDLE \'\'6BFY44-75\'\'		 254 Kč
30 55431234500
JET NEEDLE \'\'6BFY44-76\'\'		 254 Kč
30 55431934000
JET NEEDLE \'\'6GAY69-74\'\'		 254 Kč
99 55431099000
GASKET SET MIKUNI		 288 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CARBURETOR CARBURETOR CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER, CYLINDER HEAD CYLINDER, CYLINDER HEAD ENGINE CASE ENGINE CASE EXHAUST CONTROL EXHAUST CONTROL IGNITION SYSTEM IGNITION SYSTEM KICK STARTER KICK STARTER REED VALVE CASE REED VALVE CASE SHIFTING MECHANISM SHIFTING MECHANISM TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT WATER PUMP WATER PUMP

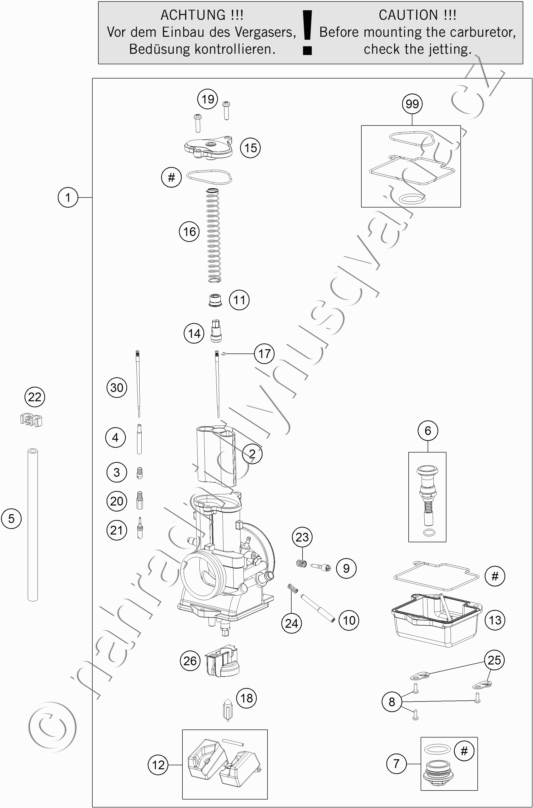

CARBURETOR
