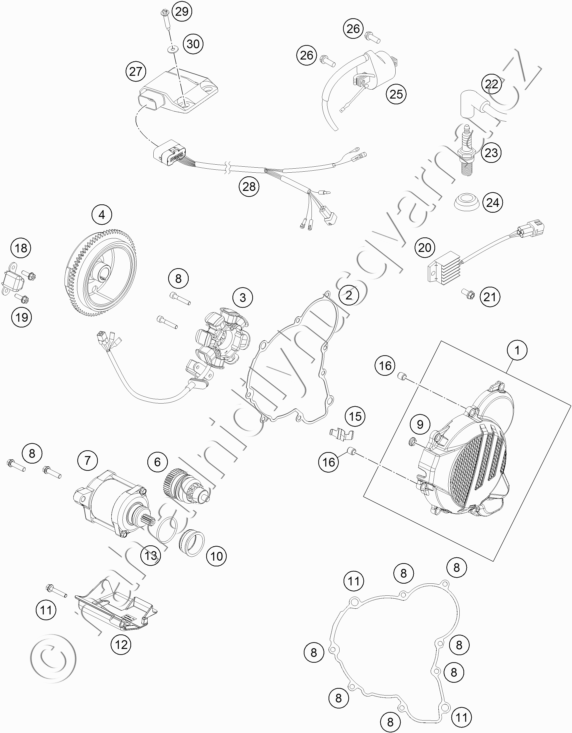

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55430802144KA IGNITION COVER CPL. |
1 876 Kč | |
| 2 | 55430040100 GASKET IGNITION COVER |
257 Kč | |
| 3 | 55439204000 STATOR |
4 425 Kč | |
| 4 | 55439205000 ROTOR |
7 800 Kč | |
| 6 | 55440126000 BENDIX |
2 348 Kč | |
| 7 | 55440001000 STARTER ENGINE |
4 639 Kč | |
| 8 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 9 | 55140030100 COLLAR BUSHING |
39 Kč | |
| 10 | 55440012000 BEARING BUSH |
158 Kč | |
| 11 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 12 | 55440040044 PROTECTION CAP STARTER ENGINE |
318 Kč | |
| 13 | 0770021260 O-RING 34,59X2,62 |
25 Kč | |
| 15 | 55439140220 HOLDING PLATE GENERATOR CABLE |
318 Kč | |
| 16 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 18 | 59039034000 PULSE GENERATOR KOKUSAN 4K3-A/B |
1 763 Kč | |
| 19 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 20 | 80011034000 VOLTAGE REGULATOR 04 |
1 678 Kč | |
| 21 | 0023060123 COLLAR SCREW M6X12 TX |
28 Kč | |
| 22 | 47039090000 SPARK PLUG CAP NGK REINFORC.04 |
481 Kč | |
| 23 | 54739093000 SPARK PLUG NGK BR7ES |
121 Kč | |
| 24 | 50231012000 SEALING CUP FOR SPARK PLUG |
65 Kč | |
| 25 | 59039006000 IGNITIONCOIL \'\'IG5128\'\' |
934 Kč | |
| 26 | 0026060186 COLLAR SCREW M6X18 ISA30 |
18 Kč | |
| 27 | 55439131000 CDI UNIT 250EXC 17 |
6 186 Kč | |
| 28 | 55439032000 HARNESS CDI BOX 2T 2017 |
1 294 Kč | |
| 29 | 0017060305 SPECIAL SCREW K60X30 WS=6 |
21 Kč | |
| 30 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč |
