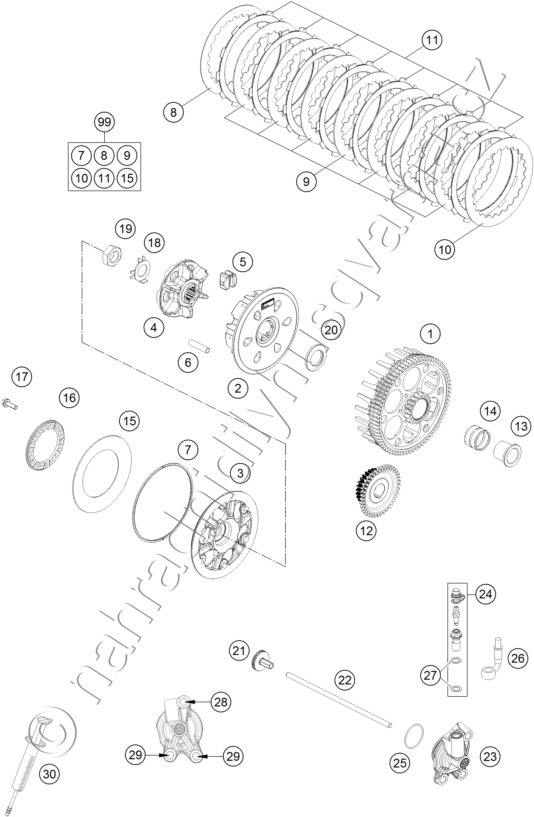

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79232201073 OUTER CLUTCH HUB EXC |
6 975 Kč | |
| 2 | 78132002300 CLUTCH HUB |
1 791 Kč | |
| 3 | 79432003000 CLUTCH PRESSURE CAP |
603 Kč | |
| 4 | 78132002111 HUB |
1 128 Kč | |
| 5 | 78132025100 DAMPING RUBBER |
50 Kč | |
| 6 | 77232004000 DRIVING SLEEVE D=7,95 L=38 |
66 Kč | |
| 7 | 78132013000 WASHER 112X118X1.5 |
158 Kč | |
| 8 | 59032010100 INTERMEDIATE DISC 1MM 2002 |
146 Kč | |
| 9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 |
183 Kč | |
| 10 | 78932010000 INTERMEDIATE DISC 1MM |
204 Kč | |
| 11 | 54832011100 LINING DISC 1,95 MM |
441 Kč | |
| 12 | 55432024026 PRIMARY GEAR |
2 550 Kč | |
| 13 | 77232015000 INNER RING |
441 Kč | |
| 14 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
| 15 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I |
413 Kč | |
| 16 | 78132006100 SPRING RING |
732 Kč | |
| 17 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 18 | 78132018000 TAB WASHER |
45 Kč | |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 20 | 77232009000 WASHER 21,8 X 37 X 5,1 |
114 Kč | |
| 21 | 78032057044 PRESSURE PIECE CPL. 08 |
512 Kč | |
| 22 | 79232054000 PUSH ROD |
300 Kč | |
| 23 | 25032061044 OUTPUT CYL. DOT CPL. 27MM M8 |
4 382 Kč | |
| 24 | 25032062000 HOLLOW SCREW CPL. M8 |
629 Kč | |
| 25 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
| 26 | 25032163000 CLUTCHPIPE L=995MM |
2 195 Kč | |
| 27 | 0603082121 SEAL RING CU DIN7603- 8X12X1 |
18 Kč | |
| 28 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 29 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 30 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 99 | 54832011110 CLUTCH KIT 250/300 13-15 |
3 760 Kč |
