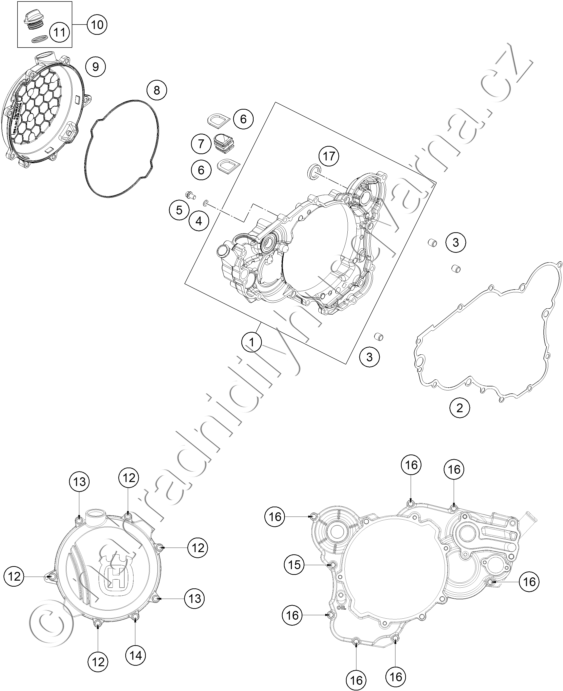

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55430001144 INNER CLUTCH COVER CPL. 2018 |
3 866 Kč | |
| 2 | 55430025100 CLUTCH COVER GASKET INSIDE |
597 Kč | |
| 3 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 4 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 5 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 6 | 54637107000 SEALING ELEMENT BOTTOM |
103 Kč | |
| 7 | 54837091100 SEALING CARRIER 07 |
94 Kč | |
| 8 | 55430027000 CLUTCH COVER GASKET OUTSIDE |
178 Kč | |
| 9 | 55430626000KA CLUTCH COVER |
1 224 Kč | |
| 10 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
| 11 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
| 12 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 13 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč | |
| 14 | 0025060556 HH COLLAR SCREW M6X55 TX30 |
29 Kč | |
| 15 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 16 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 17 | 0760193070 SHAFT SEAL RING 19X30X7 B |
77 Kč |
