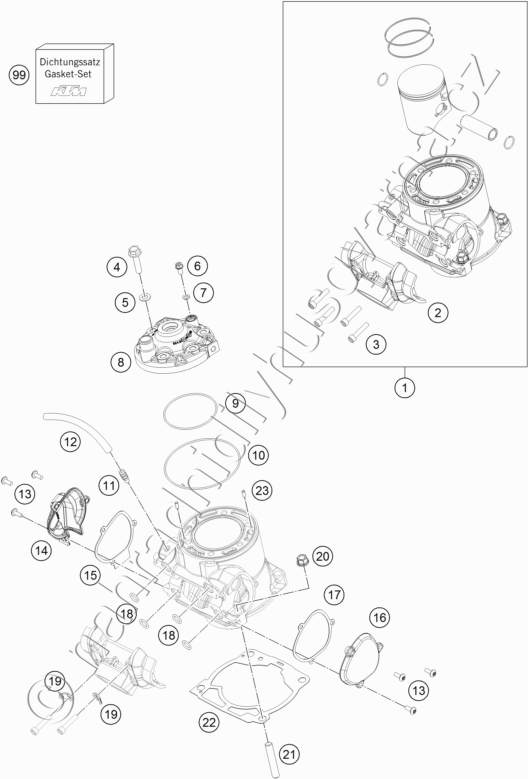

Díly pro CYLINDER, CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55430038000 CYLINDER + PISTON CPL. 17 |
21 276 Kč | |
| 2 | 55437001000 CONNECTION FLANGE |
6 178 Kč | |
| 3 | 0912060353 AH SCREW DIN0912-M 6X35 |
18 Kč | |
| 4 | 54830079000 COLLAR SCREW M 8X35 WS=13 |
57 Kč | |
| 5 | 56530080000 CU-SEAL RING 8 X 16 X 1 |
25 Kč | |
| 6 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 7 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 8 | 55430306000 CYLINDER HEAD 250 XC-W |
3 731 Kč | |
| 9 | 0770730020 O-RING 73,00X2,00 VITON |
63 Kč | |
| 10 | 0770105020 O-RING 105,00X2,00 07 |
79 Kč | |
| 11 | 58336020090 VACUUM CONNECTION M 6X1 |
116 Kč | |
| 12 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 13 | 58605083014 SCREW M5X14 TORX 25 07 |
34 Kč | |
| 14 | 5483700700015 CONTROL COVER R/S 09 |
411 Kč | |
| 15 | 54837008000 GASKET FOR CONTROL COVER R/S |
113 Kč | |
| 16 | 5483700500015 CONTROL COVER L/S 09 |
411 Kč | |
| 17 | 54837006000 GASKET FOR CONTROL COVER L/S |
113 Kč | |
| 18 | 0770116241 O-RING 11,3 X2,4 SILICON |
33 Kč | |
| 19 | 51005074000 RETAINING PLATE |
31 Kč | |
| 20 | 54630044000 COLLAR NUT M10 WS=13 |
29 Kč | |
| 21 | 0835100351S STUD SCREW DIN0835-M10X35 |
52 Kč | |
| 22 | 55430030020 CYLINDER BASE GASKET |
134 Kč | |
| 22 | 55430030025 CYLINDER BASE GASKET |
134 Kč | |
| 22 | 55430030040 CYLINDER BASE GASKET |
134 Kč | |
| 22 | 55430030050 CYLINDER BASE GASKET |
134 Kč | |
| 22 | 55430030075 CYLINDER FOOT GASKET |
134 Kč | |
| 23 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 99 | 55430097000 GASKET SET PISTON 250/300 |
823 Kč |
