Díly pro CLUTCH

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 77232001173
OUTER CLUTCH HUB
6 975 Kč
2 77232002000
INNER CLUTCH HUB
1 334 Kč
3 77232003000
PRESSURE PLATE
690 Kč
4 77232004000
DRIVING SLEEVE D=7,95 L=38
66 Kč
9 59032010200
INTERMEDIATE DISC 1,4MM 2002
183 Kč
10 59032010100
INTERMEDIATE DISC 1MM 2002
146 Kč
11 59032011100
LINING DISC 2MM 04
372 Kč
13 77232015000
INNER RING
441 Kč
16 77230029000
NUT PRIMARY WHEEL
738 Kč
18 77232018000
SHEET METAL LOCK
94 Kč
19 77232019000
HEXAGON NUT M18X1,5
82 Kč
20 77232009100
WASHER 21,8 X 37 X 3
158 Kč
23 77232023024
PRIMARY GEAR 24T.
1 642 Kč
24 77232062000
GASKET F. OUTPUT CYLINDER
47 Kč
25 0770300015
O-RING 30,00X1,50 NBR 70
33 Kč
30 78132010010
CLUTCH KIT 350 SX-F 11-15
5 033 Kč
50 59032006000
SPRING RETAINER 6,2X12X18X3,6
58 Kč
53 77232054000
PUSH ROD
300 Kč
54 78032057000
PRESSURE PIECE
340 Kč
71 0025060166
HH COLLAR SCREW M6X16 TX30
28 Kč
72 0025060356
HH COLLAR SCREW M6X35 TX30
29 Kč
73 0025060256
HH COLLAR SCREW M6X25 TX30
29 Kč
75 50329050000
VENT INJEKTION HYDR. CLUTCH
937 Kč
80 52332005200
CLUTCH SPRING
227 Kč
81 77232066000
PISTON CPL.
940 Kč
82 77232061044
OUTPUT CYLINDER CPL.
2 187 Kč
85 54832067000
O-RING
28 Kč
86 54832069000
PRESSURE SPRING
257 Kč
87 42013226000
CU-SEAL RING DIN7603-10X16X1
28 Kč
88 62513020000
BLEEDER SCREW CPL. 05
445 Kč
89 54832063000
CLUTCH PIPE 06
1 761 Kč
95 56532095000
NEEDLE BEARING K26X30X22ZW.KSE
321 Kč
96 78032057044
PRESSURE PIECE CPL. 08
512 Kč
97 54637097200
AXIAL NEEDLE BEARING AXK 1226
150 Kč
98 54637098200
AXIAL WASHER AS1226 12X26X1
57 Kč
99 0993012000
CIRCLIP DIN7993-RW12
5 Kč

Další schémata

CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE

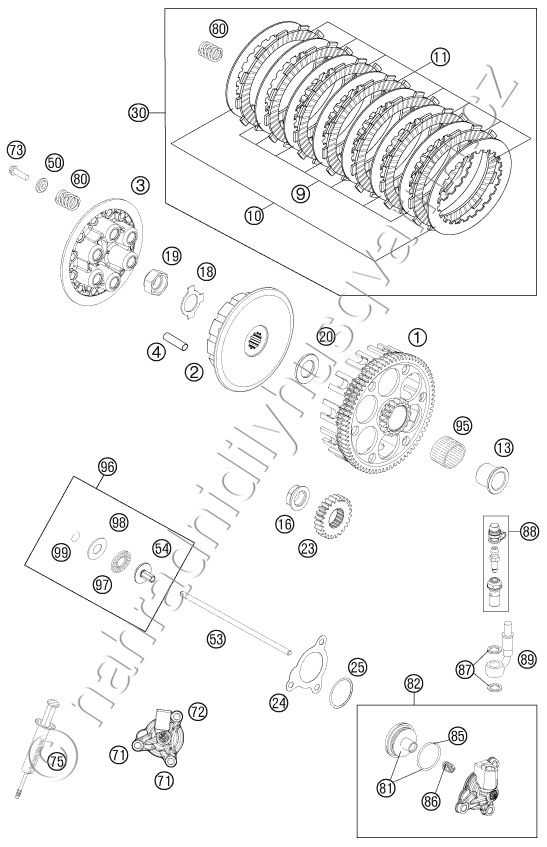

CLUTCH

Zvětšit schéma CLUTCH
CLUTCH
