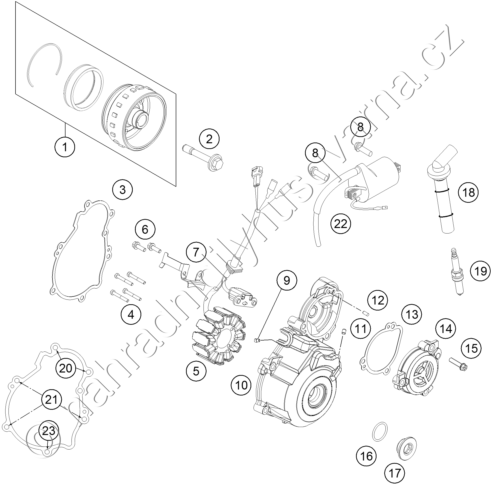

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77839005044 ROTOR EFI CPL. |
12 650 Kč | |
| 2 | 77339010100 FLYWHEEL SCREW |
87 Kč | |
| 3 | 77530040000 IGNITION COVER GASKET |
177 Kč | |
| 4 | 0012040303 AH SCREW DIN6912 M4x30 |
23 Kč | |
| 5 | 77239004000 STATOR |
5 238 Kč | |
| 6 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 7 | 77230002050 WIRING RETAINING BRACKET |
180 Kč | |
| 8 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 9 | 80030058060 OIL JET \'\'60\'\' M4 |
236 Kč | |
| 10 | 77230002000KA IGNITION COVER |
3 103 Kč | |
| 11 | 0913050063 THREAD PIN DIN 913 M5X6 |
15 Kč | |
| 12 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 13 | 77240043000 GASKET TORQUE LIMITER |
50 Kč | |
| 14 | 77230002010KA COVER TORQUE LIMITER |
624 Kč | |
| 15 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 16 | 07700240251 O-RING 24.00X2.50 VITON |
39 Kč | |
| 17 | 7723000216068 LOCK SCREW M24X1,5 |
1 102 Kč | |
| 18 | 77739090000 SPARK PLUG CONNECTOR |
1 052 Kč | |
| 19 | 77239093000 PLUG NGK LMAR9AI - 8 |
735 Kč | |
| 20 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč | |
| 21 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 22 | 58439006000 IGNITIONCOIL IG3826 KOKUSAN\'96 |
1 278 Kč | |
| 23 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč |
