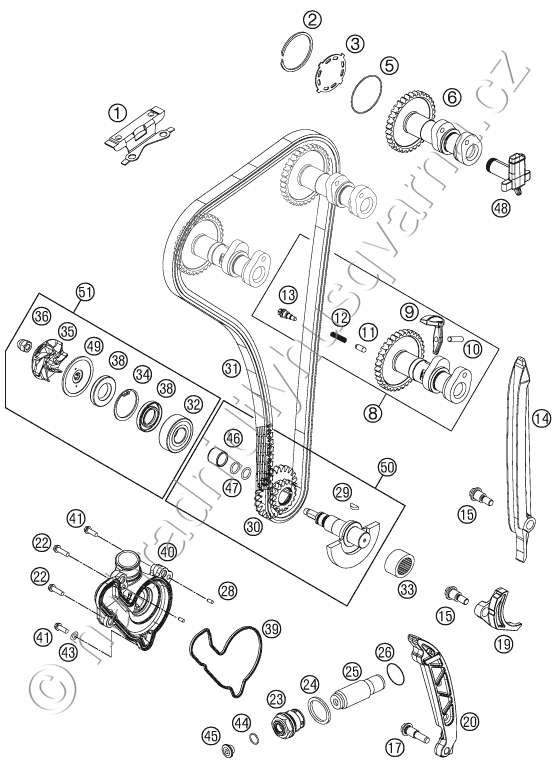

Díly pro TIMING DRIVE
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 79236004000 TIMING CHAIN GUIDE TOP |
491 Kč | |
2 | 0472042150 COPPER WASHER SB42 |
21 Kč | |
3 | 77736082000 BREATHER PLATE |
68 Kč | |
5 | 0770400010 O-RING 40,00X1,00 VITON |
159 Kč | |
6 | 77736009000 CAMSHAFT INTAKE |
3 714 Kč | |
8 | 77736010044 CAMSHAFT EXHAUST CPL. |
5 633 Kč | |
9 | 77736016000 DECOMPRESSION LEVER CPL. |
1 200 Kč | |
10 | 0402051880 NEEDLE ROLLER NRB 5X18,8 G2 |
49 Kč | |
11 | 77336016055 DECO SPRING PIN L=10,6 07 |
368 Kč | |
12 | 77336017030 SPRING FOR AUTO DECOMPR. |
45 Kč | |
13 | 77336017050 DECO SCREW PLUG |
318 Kč | |
14 | 77236001000 TIMING CHAIN GUIDE |
126 Kč | |
15 | 77236001160 BUSHING SCREW M6 |
156 Kč | |
17 | 77236002160 BUSHING SCREW M8 |
42 Kč | |
19 | 77236005000 SECURING PROTECTION |
57 Kč | |
20 | 77236002000 TENSIONING RAIL |
350 Kč | |
22 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
23 | 77336008000 HOLDING BOLT M24X1,5 |
334 Kč | |
24 | 0603242920 CU SEAL-RING DIN7603 A24X29X2 |
29 Kč | |
25 | 77036003000 CHAIN ADJUSTER HYD. 05 |
1 301 Kč | |
26 | 0770180020 O-RING 18.00X2.00 NBR70 |
21 Kč | |
28 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
29 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
30 | 77236076000 TIMING VALVE TWIN WHEEL |
2 160 Kč | |
31 | 77236013000 TIMING CHAIN |
2 428 Kč | |
32 | 0625062022 BALL BEARING 6202 C0 2 |
263 Kč | |
33 | 77230058000 NEEDLE BEARING NK16/16 |
342 Kč | |
34 | 0472300120 CIRCLIP 30X1,2 |
18 Kč | |
35 | 81235055020 WATER PUMP ROTOR |
126 Kč | |
36 | 61230045000 CAP NUT M6 STAINLESS STEEL |
20 Kč | |
38 | 07601530451 SHAFT SEAL RING 15X30X4.5 BAUD |
94 Kč | |
39 | 77735053000 WATER PUMP COVER GASKET |
126 Kč | |
40 | 77735052000 WATERPUMP COVER |
730 Kč | |
41 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
43 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
44 | 0770010010 O-RING 10.00X1.00 NBR70 |
18 Kč | |
45 | 77236080100 THREADED PLUG |
114 Kč | |
46 | 77236072020 WATER PUMP WEAR BUSHING |
615 Kč | |
47 | 07700900151 O-RING 9X1,5 V80 SH |
21 Kč | |
48 | 77236081000 ANGLE PIECE F. BREATHER SYSTEM |
73 Kč | |
49 | 81235055110 DISC WATER PUMP |
113 Kč | |
50 | 77536072033 BALANCER SHAFT CPL. |
5 699 Kč | |
51 | 77235055010 WATER PUMP REP. KIT 11-14 |
937 Kč |
