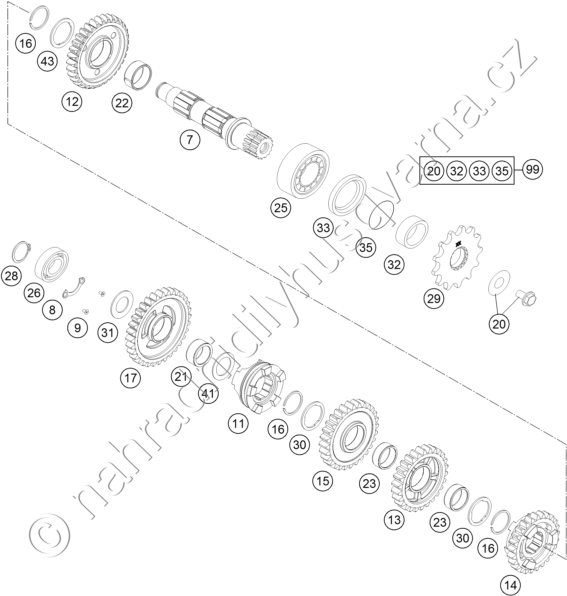

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 77733110000 COUNTERSHAFT |
3 109 Kč | |
| 8 | 78033132000 TAB WASHER BEARING COUNT.SHAFT |
84 Kč | |
| 9 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 11 | 77733316000 SHIFT COLLAR |
3 076 Kč | |
| 12 | 77733012000 IDLER GEAR 2ND G. T=32 |
2 160 Kč | |
| 13 | 77733214000 IDLER GEAR 4.G. Z=26 |
2 160 Kč | |
| 14 | 77733215000 SLIDING GEAR 5.G.,Z=25 |
2 160 Kč | |
| 15 | 77733213000 IDLER GEAR 3.G. Z=28 |
2 160 Kč | |
| 16 | 0417024000 CIRCLIP WS24 |
25 Kč | |
| 17 | 77733011000 IDLER GEAR 1ST G. T=32 |
2 473 Kč | |
| 20 | 59033034044 SCREW 10.9+SPRING WASHER |
94 Kč | |
| 21 | 0405202612 NEEDLE BEARING K 20X26X12 |
323 Kč | |
| 22 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. |
103 Kč | |
| 23 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED |
175 Kč | |
| 25 | 49030023000 CYLINDRICAL ROLLER BEARING NJ205 |
1 243 Kč | |
| 26 | 0625062035 BALL BEARING 6203 JR2 C3 |
215 Kč | |
| 28 | 0471170015 CIRCLIP DIN 0471-17X1, 5 |
21 Kč | |
| 29 | 79233029013 SPROCKET 13T |
360 Kč | |
| 29 | 79233029014 SPROCKET 14T |
360 Kč | |
| 30 | 77733043000 STOP DISC 23,4X31X1,5 |
129 Kč | |
| 31 | 77233020000 STOP DISK 17,2X30X1,3 |
129 Kč | |
| 32 | 54633014100 SPACER BUSHING 12MM |
459 Kč | |
| 33 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR |
65 Kč | |
| 35 | 0770020220 O-RING 25,12X1,78 NBR70 |
17 Kč | |
| 41 | 54833080000 STOP DISC 20,2X30X1 |
73 Kč | |
| 43 | 77733044000 STOP DISC 24X32X1,5 |
129 Kč | |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE |
538 Kč |
