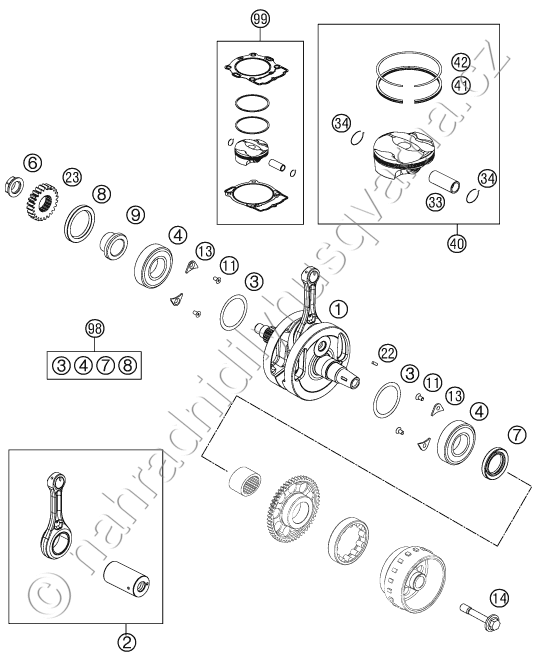

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77730018100 CRANKSHAFT CPL. |
23 703 Kč | |
| 2 | 77730015144 CONNECTING ROD REPAIR SET |
8 317 Kč | |
| 3 | 0988324510 THRUST WASHER 988ST 32X0,1 |
15 Kč | |
| 3 | 0988324515 THRUST WASHER 988ST 32X0,15 |
15 Kč | |
| 3 | 0988324530 THRUST WASHER 988ST 32X0,30 |
15 Kč | |
| 4 | 77330082200 BEARING NJ 206 ECP/HN3C4HVA624 |
1 006 Kč | |
| 6 | 77230029000 NUT PRIMARY WHEEL |
738 Kč | |
| 7 | 0760304772 SH.SEAL RING 30X47X7 BSL VITON |
294 Kč | |
| 8 | 0760405560 SHAFT SEAL RING A40x55x6 VITON |
206 Kč | |
| 9 | 77232022000 SPACER BUSHING PRIMARY GEAR |
570 Kč | |
| 11 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 13 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 14 | 77339010100 FLYWHEEL SCREW |
87 Kč | |
| 22 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 23 | 77232023024 PRIMARY GEAR 24T. |
1 642 Kč | |
| 33 | 77730033200 PISTON PIN |
802 Kč | |
| 34 | 77730074000 CIRCLIP 16X1.4 MM |
305 Kč | |
| 40 | 77730007100 I PISTON I CPL. 250 |
7 275 Kč | |
| 40 | 77730007100 II PISTON II CPL. 250 |
7 275 Kč | |
| 41 | 77730032000 SCRAPER RING 250 |
1 011 Kč | |
| 42 | 77730030000 COMPRESSIONRING 250 |
823 Kč | |
| 98 | 00050002311 CRANKSHAFT REP. KIT SX-F 13-15 |
3 172 Kč | |
| 99 | 00050000222 PISTON KIT GR.I 250 SX-F13-14 |
7 146 Kč | |
| 99 | 00050000223 PISTON KIT GR.II 250 SX-F 13 |
7 146 Kč |
